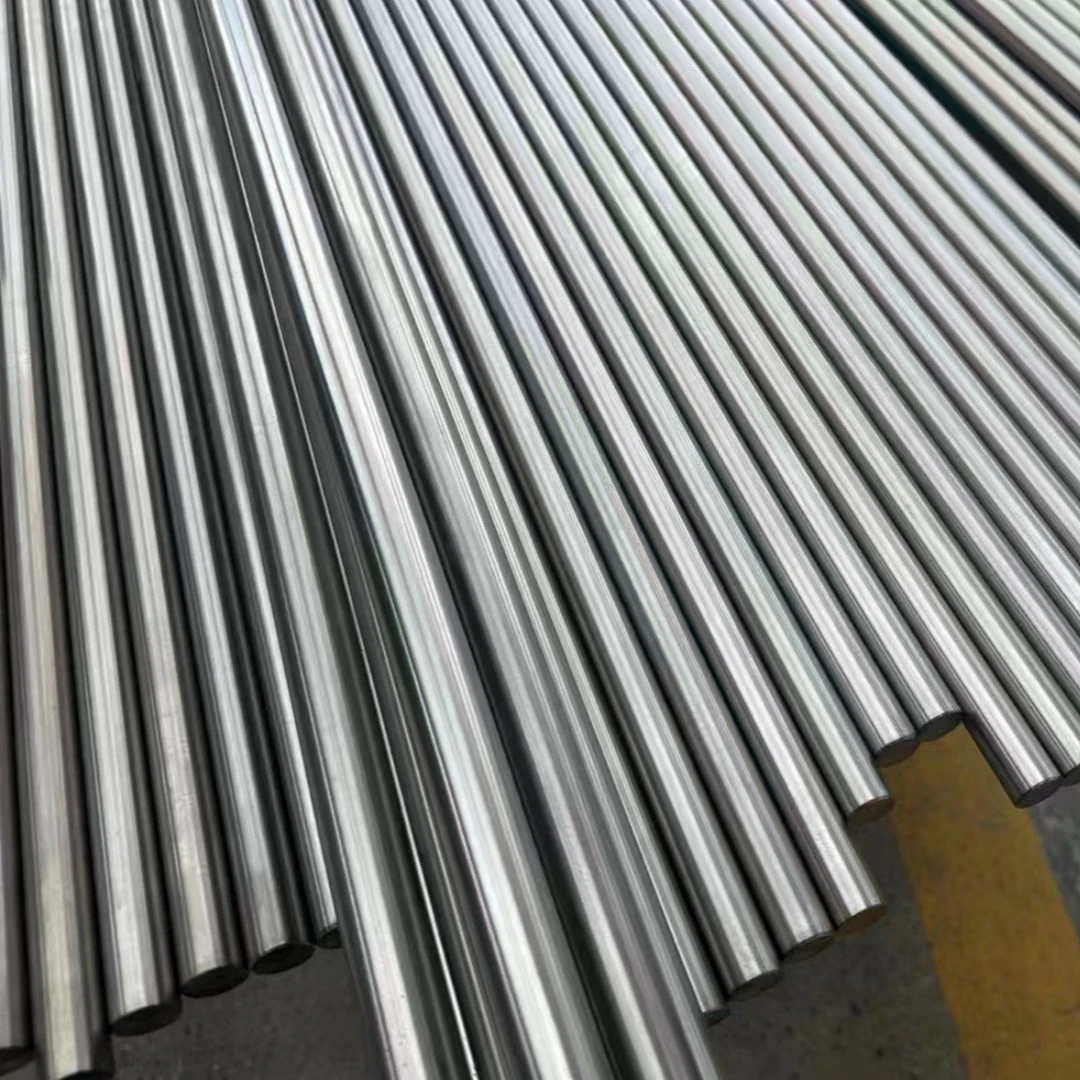

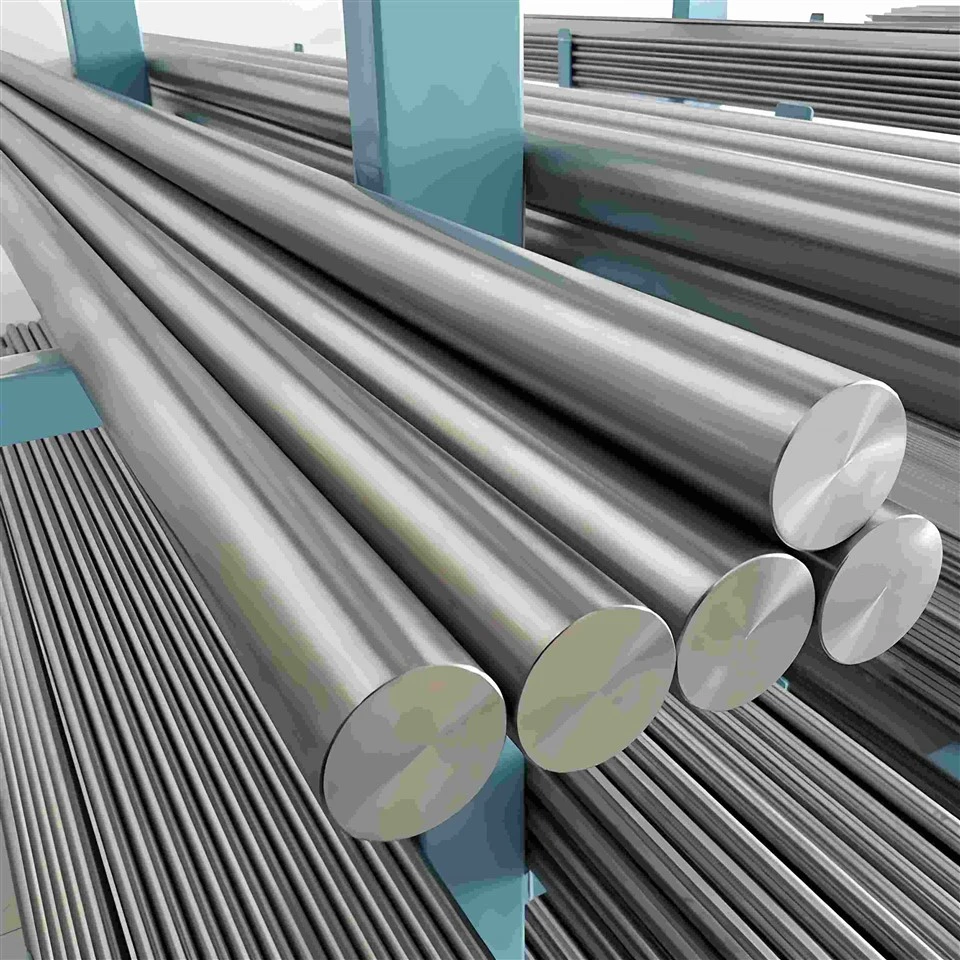

Titanium Qib 2 Bar
ASTM B348 Qib 2 Titanium Bar (UNS R50400)yog cov khoom lag luam ntshiab titanium muaj nuj nqis rau nws cov khoom zoo heev corrosion, zoo machinability, thiab zoo formability thiab weldability. Nws yog feem ntau muab raws lititanium puag ncig bar, nrog square bar, tiaj tiaj, thiab lwm yam kev hloov kho tus ntoo khaub lig- ntu muaj raws li qhov kev thov.
Piv nrog rau siab -lub zog titanium alloys xws liTi-6Al-4V Qib 5, Qib 2 titanium muaj ntau dua ductility, zoo dua weldability, thiab yooj yim txoj kev, ua rau nws zoo haum rau manufacturing Cheebtsam nrog complex duab los yog xav tau fabrication.
Qib 2 Titanium Bar yog dav siv hauv cov khoom siv hluav taws xob, cov khoom siv tshuaj, cov khoom siv hauv dej hiav txwv, corrosion-cov kav dej tiv thaiv, thiab lwm yam kev siv hauv kev lag luam uas yuav tsum tau siv ntev ntev - corrosion kuj thiab yooj yim ntawm fabrication yuav tsum tau. Cov ncauj lus kom ntxaws txhua yam khoom, tshuaj lom neeg muaj pes tsawg leeg, thiab cov kev cai tsim nyog tau muab rau hauv cov lus qhia hauv qab no.
| Khoom |
|
|
Tensile Strength Ntau dua lossis sib npaug ntawm 345 MPa; Yield zog ntau dua los yog sib npaug rau 275 MPa |
Haum rau cov khoom lag luam dav dav. |
|
Elongation Ntau dua lossis sib npaug li 20%; Tus nqi: 24% -29% |
Zoo txias sib sau, vuam, thiab machining kev ua tau zoo. |
|
Uniform corrosion tus nqi nyob rau hauv ambient seawater <0.0001 mm/y |
Kev tiv thaiv zoo heev rau dej hiav txwv, chlorides, thiab tshuaj lom neeg. |
|
Qhov ceev: 4.51 g / cm³ |
Kev ua haujlwm ruaj khov hauv kev xav tau kev lag luam ib puag ncig. |
Standards & Certifications
- ASTM B348 (Kev siv dav dav)
- ASTM F67 (Kev kho mob cog)
- ISO 5832 -2 (Kev kho mob qib ntshiab titanium)
- Qib: Qib 2, Qib 2H
- Universal Khoom Qib: UNS R50400
Cov ntaub ntawv shipping
- Lub Sijhawm Lead: Hauv - cov khoom hauv Tshuag muaj rau xa tam sim.
- Custom Orders: Lub sij hawm xa tuaj nyob ntawm qhov nyuaj thiab kev txiav txim kom muaj nuj nqis.
- Ntim: Export -qib ntoo crates, lossis customized ntim raws li kev thov.
- Cov nqe lus them nqi: T / T (Telegraphic Transfer)
-
Cov ntsiab lus kev lag luam: FOB, EXW, CIF, DAP
-
Shipping Methods: Hiav txwv Freight / Air Freight
ASTM B348 Qib 2 Titanium Chemical Composition
|
Element |
Cov ntsiab lus siab tshaj plaws (wt.%) |
Qhov cuam tshuam rau cov khoom vaj khoom tsev |
|
Titanium (Ti) |
Tshuav |
Lub hauv paus khoom muab cov thawj corrosion kuj thiab mechanical zog. |
|
Hlau (Fe) |
0.30 |
Tswj impurity; Cov ntsiab lus hlau ntau dhau tuaj yeem cuam tshuam rau kev tiv thaiv corrosion thiab txhua yam khoom. |
|
Cov pa oxygen (O) |
0.25 |
Txhim kho lub ntsiab lus uas ua rau kom muaj zog tensile thiab tawm los, thaum qib siab dua tuaj yeem txo cov ductility. |
|
Cov pa roj carbon (C) |
0.08 |
Tswj impurity; Cov ntsiab lus ntau dhau tuaj yeem cuam tshuam ductility thiab mechanical kev ua tau zoo. |
|
Nitrogen (N) |
0.03 |
Interstitial keeb; tswj kom muaj qhov sib npaug ntawm lub zog thiab ductility. |
|
Hydrogen (H) |
0.015 |
Tswj impurity; hydrogen ntau dhau tuaj yeem cuam tshuam rau ductility thiab kev ua haujlwm ntawm cov khoom siv. |
Qib 2 vs. Qib 2H
- Qib 2H: Ua tiav los ntawm kev ua haujlwm txias txias, Qib 2H titanium muab kev txhim kho lub zog thiab haum rau siab - cov khoom siv siab xws li cov hlab ntsha siab thiab cov khoom siv hluav taws xob.
Qhov ntau thiab tsawg thiab qhov hnyav ntawm Titanium Qib 2 Bar
|
Txoj kab uas hla (Inches) |
Txoj kab uas hla (mm) |
Ntev (mm) |
Qhov hnyav (kg) |
Tolerance Standard |
|
1/4 |
6.350 |
1000 |
0.14 |
AMS 2241S / H / h |
|
1/2 |
12.700 |
1000 |
0.57 |
AMS 2241S / H / h |
|
3/4 |
19.050 |
1000 |
1.29 |
AMS 2241S / H / h |
|
1 |
25.400 |
1000 |
2.29 |
AMS 2241S / H / h |
|
1 1/4 |
31.750 |
1000 |
3.57 |
AMS 2241S / H / h |
|
1 1/2 |
38.100 |
1000 |
5.14 |
AMS 2241S / H / h |
|
2 |
50.800 |
1000 |
9.14 |
AMS 2241S / H / h |
|
3 |
76.200 |
1000 |
20.57 |
AMS 2241S / H / h |
|
4 |
101.600 |
1000 |
36.56 |
AMS 2241S / H / h |
|
5 |
127.000 |
1000 |
57.13 |
AMS 2241S / H / h |
|
6 |
152.400 |
1000 |
82.27 |
AMS 2241S / H / h |
Vim Li Cas Xaiv Peb Ti Qib 2 Qws?
Comprehensive Quality Assurance
- Tag nrho cov kauj ruam ntau lawm yog tag nrho traceable, nrog cov ntaub ntawv xeem cov ntaub ntawv (MTC) muab rau txhua batch.
- Peb ua raws li ISO 9001 thiab AS9100 cov txheej txheem tswj kev ua haujlwm kom ntseeg tau cov khoom lag luam.
- Tsis yog -kev kuaj kev puas tsuaj, xws li kev ntsuas ultrasonic thiab kev nkag mus, muaj rau kev lees paub ntxiv.
Customization raws li kev xav tau tshwj xeeb
- Peb muab kev cai qhov ntau thiab tsawg, qhov ntev, tiav, thiab muab cov xwm txheej kom tau raws li koj qhov tshwj xeeb tshwj xeeb.
- Cov kev kho deg yog muaj los txhim kho cov khoom ua haujlwm ntev thiab kev ua haujlwm.
.
Kev Pabcuam Kev Pabcuam Siab & Kev Ua Haujlwm nrawm
- Tau txais cov kws tshaj lij cov lus qhia xaiv cov khoom tsis muaj nqi ntxiv.
- Kev pabcuam machining tshwj xeeb, suav nrog txiav, drilling, dabtsi yog khoov, thiab precision fabrication.
- Kev pabcuam ceev ceev kom paub meej lub sijhawm teb sai rau koj cov kev xav tau.
FAQ
Q: Dab tsi kev lag luam feem ntau siv Qib 2 Titanium Bars?
- Marine Engineering: Rau kev tsim cov khoom tseem ceeb xws li cov nkoj nkoj thiab cov khoom siv sab nrauv.
- Cov ntawv thov kev lag luam: Zoo tagnrho rau cov khoom siv petrochemical thiab tshuaj lom neeg uas xav tau corrosion{0}} cov ntaub ntawv tiv taus thiab ruaj khov.
- Kev Siv Kho Mob: Siv dav hauv cov cuab yeej kho mob, cov cuab yeej phais mob, thiab kev cog qoob loo vim nws cov biocompatibility.
Q: Puas muaj kev cai ntau thiab tsawg ntawm titanium tuav?
A: Yog,peb muab kev cai sizing, lengths, finishes, thiab tej yam kev mob tailored kom tau raws li koj qhov project yuav tsum.
Q: Qib 2 Titanium piv rau lwm yam alloys li cas Qib 5 Titanium Bar?
A: Ti Qib 2 muaj kev tiv thaiv corrosion zoo dua thiab zoo tagnrho rau kev siv zog me ntsis. Hauv qhov sib piv, Qib 5 (Ti-6Al-4V) muab lub zog ntau dua thiab feem ntau yog siv hauv aerospace thiab kev ua haujlwm siab.
Q: Koj cov khoom titanium zoo li cas kom ntseeg tau?
A: Peb cov txheej txheem tsim khoom nruj me ntsis ua raws li cov qauv thoob ntiaj teb, kom ntseeg tau siab - kev tswj xyuas zoo los ntawm kev xaiv cov khoom siv raw mus rau qhov kawg ntawm kev tshuaj xyuas cov khoom. Txhua yam khoom raug kuaj xyuas kom ua tau raws li kev lag luam specifications.
Cim npe nrov: ti qib 2 bar, Tuam Tshoj ti qib 2 bar manufacturers, lwm tus neeg, Hoobkas
