Siab -Purity Medical Qib Titanium Alloy Txheej txheem cej luam
CovASTM F136 Ti-6Al-4V ELI Titanium Rods(Qib 23) yog qib siab -purity version ntawm Ti-6Al-4V, tsim tshwj xeeb rau kev siv kho mob. Nrog cov pa oxygen tsawg (siab tshaj 0.13%), nws muaj kev txhim kho plasticity thiab tawg toughness piv rau tus qauv Ti-6Al-4V (Qib 5). Qhov no titanium alloy yog zoo tagnrho rau siv nyob rau hauv ntau yam kev kho mob implants, phais, thiab kho hniav implants vim nws tshwj xeeb biocompatibility, siab zog, lub teeb yuag, thiab corrosion kuj.
Specifications rau Kev Kho Mob Qib Titanium Bar
|
Qib |
Qib 23 |
|
Keeb kwm |
Baoji, Suav teb |
| Txoj Kev Them Nyiaj |
Tshuag Orders: Yuav tsum them tag nrho ua ntej xa zaub mov Custom Orders: 30% tso nyiaj, tshuav nyiaj li cas ua ntej xa zaub mov |
|
Tech |
Forged, Rolled |
|
Cov duab |
Round rods, Hexagonal rods, Rectangular rods, thiab lwm yam. |
|
Ua kom tiav |
Tshuab Polishing, Sib Tsoo Polishing, Sandblasting |
|
Daim ntawv thov |
Cov tshuaj kho mob, phais phais, kev tsim khoom siv kho mob |
|
Delivery Status |
Cold ua hauj lwm xeev (Y), Annealed xeev (M) |
|
Ntim |
Tshwj xeeb export thickened ntoo thawv packing |
| Daim ntawv pov thawj zoo | ISO9001, AS9100 |
| MOQ | 100 kg |
Cov tshuaj muaj pes tsawg leeg rau ASTM F136 titanium rods
|
Element |
Kev sib xyaw, (%) (mass/mass) |
|
Titanium |
tshuav nyiaj li cas |
|
Carbon, max |
0.08 |
|
Aluminium |
5.5-6.50 |
|
Vanadium |
3.5-4.50 |
|
Hlau, max |
0.25 |
|
Oxygen, max |
0.13 |
|
Nitrogen, max |
0.05 |
|
Hydrogen, max |
0.012 |
Mechanical Properties ntawm ASTM F136 Ti-6Al-4V ELI Titanium Bar
|
Nominal Diameter los yog Distance Nruab nrab Parallel Sab, in.(mm) |
Tensile zog min, psi (Mpa) |
Yield zog (0.2% Offset) Min, psi (Mpa) |
Elongation hauv 4D |
Kev txo qis ntawm cheeb tsam, Min,% |
||||
|
L |
LT |
ST |
L |
LT |
ST |
|||
|
<0.187(<4.75mm) |
125000(860) |
115000(795) |
10 |
- |
- |
- |
- |
- |
|
0.187- Tsawg dua lossis sib npaug rau 1.75(4.75- Tsawg dua lossis sib npaug rau 44.45) |
125000(860) |
115000(795) |
10 |
- |
- |
25 |
- |
- |
|
1.75- Tsawg dua lossis sib npaug li 2.50 (44.45- Tsawg dua lossis sib npaug rau 63.50) |
12000(825) |
110000(760) |
8 |
- |
- |
20 |
- |
- |
|
2.50- Tsawg dua lossis sib npaug li 4.00 (63.50- Tsawg dua lossis sib npaug rau 101.60) |
12000(825) |
110000(760) |
8 |
8 |
8 |
15 |
15 |
15 |

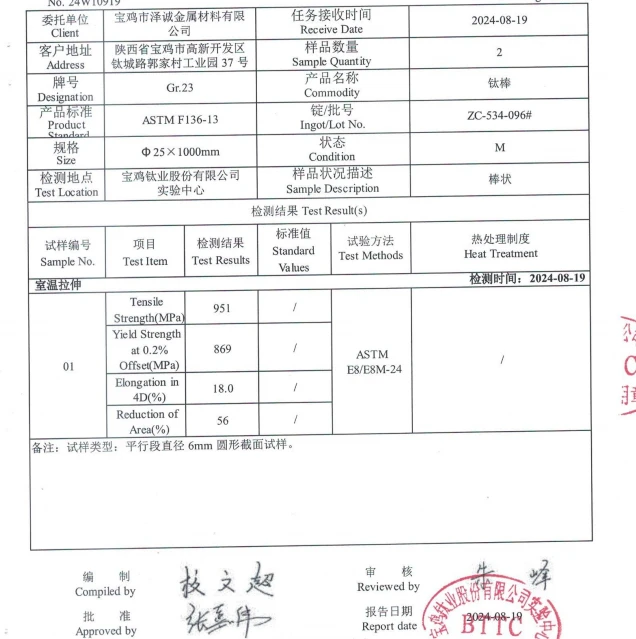

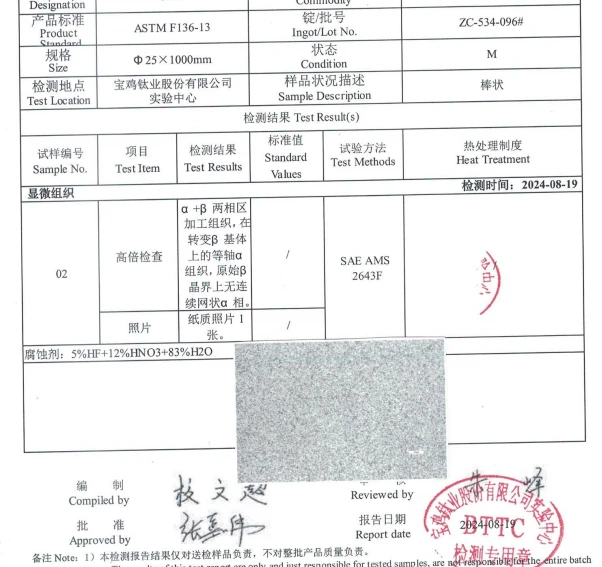

Kev ywj pheej thib peb- cov koom haum ua haujlwm ua txhua yam kev sim ua ntej txhua qhov khoom xa tuaj. Daim ntawv tshaj tawm tshuaj xyuas tag nrho suav nrog txhua qhov kev txiav txim, ua kom tag nrho traceability thiab ua raws li cov qauv thoob ntiaj teb.
Qib sib npaug rau ASTM F136 Ti-6Al-4V ELI Titanium Rods
|
ASTM Txuj |
Kev sib xyaw |
Tuam Tshoj (GB/T) Txuj |
DIN Txuj |
UNS Txuj |
|
Qib 23 |
Ti-6Al-4V ELI |
TC4 ELI |
3.7165 |
UNS R56401 |

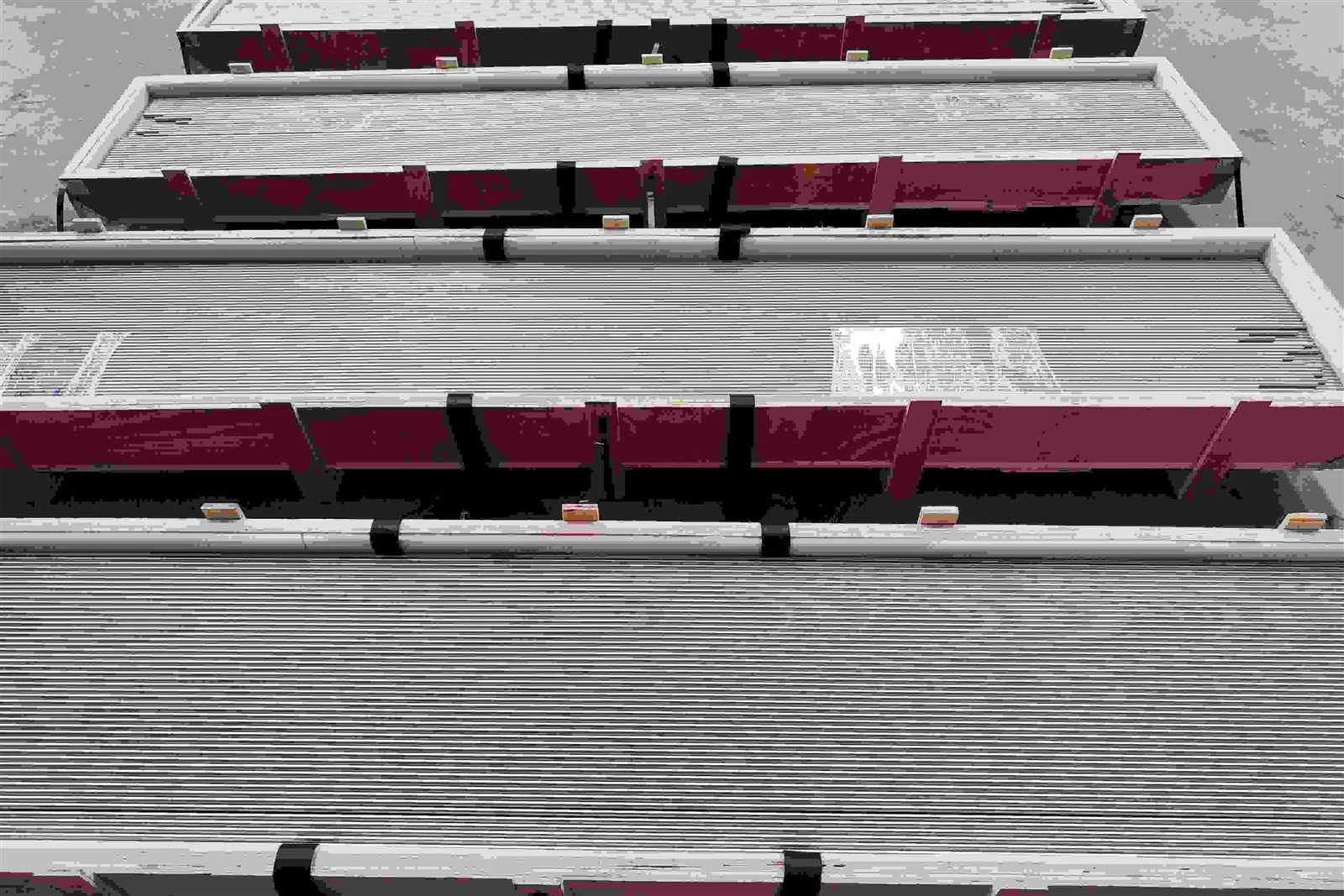

ASTM F136 Khoom Zaub
Customization Services rau ASTM F136 Ti-6Al-4V ELI Titanium Bar
- Loj Customization: Peb muab cov diameters xws li Φ3mm mus rau Φ300mm, nrog rau kev cai ntev kom tau raws li koj cov kev xav tau tshwj xeeb.
- Kev Kho Hniav: Ntxiv rau cov txheej txheem machining polishing thiab sandblasting, peb tuaj yeem muab cov kev kho mob tshwj xeeb xws li tawv anodizing thiab txheej thaum thov.
- Kev tshuaj xyuas cov ntaub ntawv: Peb muab cov ntaub ntawv soj ntsuam ua tiav rau txhua pawg, kom ntseeg tau tias cov khoom ua tau raws li ASTM F136 thiab lwm yam qauv thoob ntiaj teb.
ASTM F136 Ti-6Al-4V ELI Titanium RodsCov ntawv thov - Kev Kho Mob, Kev phais & Kev Kho Hniav
- Tshuaj kho mob: pob txha implants, pob qij txha pob txha, kho hniav, thiab lwm yam.
- Surgical Instruments: Precision surgical tools, microsurgical instruments, thiab lwm yam.
- Cov cuab yeej kho mob: Vascular stents, cov cuab yeej saib xyuas, kho mob sensors, thiab lwm yam.

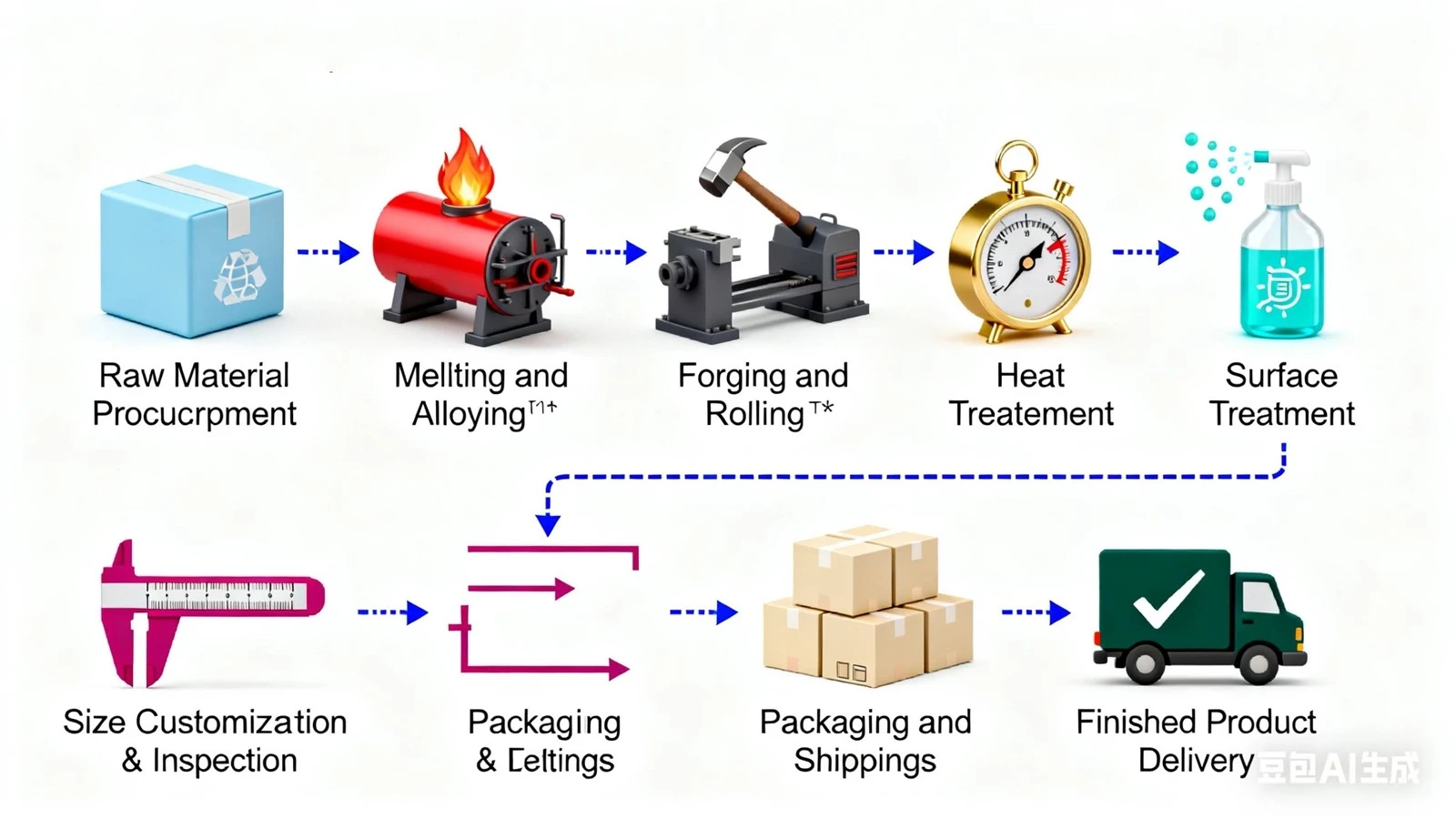

ASTM F136 Titanium Bar Manufacturing Txheej txheem - Los ntawm raw khoom mus rau cov khoom kawg
- Raw Material Procurement: Peb tau txais qib siab -Qib 0/1 zoo sponge titanium nrog cov impurity tsawg los tsim titanium ingots.
- Melting & Alloying: Titanium, txhuas, thiab vanadium yog yaj ua ke los ua Ti-6Al-4V ELI titanium alloy ingots.
- Forging & Rolling: Cov hlau ingots yog forged thiab dov rau hauv titanium tuav ntawm qhov xav tau loj.
- Kev kho cua sov: Annealing yog siv los txhim kho cov khoom siv thiab txo cov kev ntxhov siab sab hauv.
- Kev kho deg: Cov tuav yog tom qab ntawd machined, polished, thiab sandblasted raws li cov neeg siv khoom xav tau.
- Size Customization & Inspection: Peb muab cov kev cai loj me me thiab ua cov kev tshuaj xyuas nruj.
- Ntim & Xa Khoom: Cov khoom kawg tau ntim rau hauv cov ntoo crates kom muaj kev nyab xeeb.
Titanium Bar FAQ - Cov Lus Nug Feem Ntau Txog Titanium Bars
1. Koj ua li cas kom ntseeg tau qhov zoo ntawm ASTM F136 titanium tuav?
Tag nrhoASTM F136 Ti-6Al-4V ELI titanium tuavraug nruj thib peb -kev xeem. Txhua qhov kev txiav txim suav nrog cov lus qhia ntxaws ntxaws, nrog rau daim ntawv pov thawj ntawm kev ua tau zoo los ntawm peb lub tuam txhab los xyuas kom meej cov khoom ua tau raws li ASTM F136 thiab cov qauv zoo thoob ntiaj teb.
2. Lub ntim zoo li cas?
PebASTM F136 titanium tuavtau ntim rau hauv kev cai siv ntoo crates los tiv thaiv kev puas tsuaj thaum lub sij hawm thauj mus los. Ua ntej ua zaub mov xa tuaj, peb yuav muab cov duab lossis cov yeeb yaj kiab rau kev pom zoo rau cov neeg siv khoom kom ntseeg tau tias lub ntim khoom ruaj ntseg thiab txhim khu kev qha. Cov tshuaj ntim no yog tsim rau ntev - deb thiab xa khoom thoob ntiaj teb.
3. Kuv tuaj yeem yuav ASTM F136 titanium pas nrig li cas?
Thov xa koj cov specifications xav tau rauinfo@zctitanium.com. Peb pab neeg muag khoom yuav hu rau koj tam sim nrog cov lus hais thiab cov ntsiab lus xa khoom.
4. Koj puas muab cov qauv?
Yog lawm, peb muab cov qauv dawb rau kev kuaj. Txawm li cas los xij, koj yuav tsum them tus nqi thauj khoom thiab kev lis kev cai. Koj tuaj yeem kuaj peb cov khoom kom ntseeg tau tias lawv ua tau raws li koj cov kev xav tau thiab cov qauv zoo. Thov hu rau peb pab neeg muag khoom kom thov tus qauv.
Cim npe nrov: astm f136 ti-6al-4v eli titanium bar, Tuam Tshoj astm f136 ti-6al-4v eli titanium bar manufacturers, lwm tus neeg, Hoobkas
