Qib 7 Titanium Bar (UNS R52400 / TA9 / DIN 3.7235)
Qib 7 titanium (UNS R52400 / TA9) yog palladium- txhim kho kev lag luam ntshiab titanium alloy tshwj xeeb tsim los rau qhov chaw muaj corrosive heev.Nrog rau kaum xyoo ntawm kev lag luam daim ntawv thov nyob rau hauv tshuaj reactors, tshav kub exchangers, thiab seawater systems, qhov nocorrosion resistant titanium bar (Ti-0.2Pd alloy)tau lees paub rau nws qhov kev tiv thaiv zoo tshaj plaws los txo cov kua qaub, chloride- nplua xov xwm, thiab crevice corrosion.
Corrosion Mechanism ntawm Ti-0.2Pd Alloy
Qhov sib ntxiv ntawm palladium (Pd) txhim khu kev ruaj ntseg ntawm passive oxide zaj duab xis ntawm titanium, tshwj xeeb tshaj yog nyob rau hauv kev txo cov kua qaub qhov chaw uas ntshiab titanium yuav ua tsis tau.Cov txheej txheem no ua rau txo qis kev pheej hmoo ntawm kev xeb hauv zos xws li pitting thiab crevice nres.
Vim li cas Qib 7 Titanium yog qhov zoo tagnrho rau Corrosive Ib puag ncig
Acid Compatibility Performance
Qib 7 titanium qhia tau tias muaj kev ruaj ntseg zoo hauv cov kua qaub xws li sulfuric acid thiab hydrochloric acid.
Kev tiv thaiv nyob rau hauv chloride-Rich Environments
Qhov sib ntxiv ntawm palladium (Pd) txhim kho kev ua tau zoo nyob rau hauv siab -chloride tej yam kev mob xws li dej hiav txwv thiab tshuaj ua cov xov xwm.
Localized Corrosion tiv thaiv
Qib 7 muaj kev tiv thaiv zoo tshaj plaws rau kev tawm tsam kev sib tsoo thiab kev sib tsoo hauv cheeb tsam piv nrog cov qib titanium ntshiab hauv kev lag luam.
Daim ntawv thov hauv Chemical Processing Systems
Nws cov tshuaj lom neeg ruaj khov ua rau Qib 7 tau siv dav hauv cov tshuab hluav taws xob, cov khoom siv hluav taws xob, thiab cov kua dej ua haujlwm.
Physical thiab Mechanical Properties
- Qhov ceev 4.51g / cm33
- Grain loj 6.0-7.0
- Txuj: ASTM B348, ASME SB348, GB / T2965
- Tensile zog: Ntau dua lossis sib npaug rau 345Mpa
- Yield zog (0.2% Offset): Ntau dua lossis sib npaug rau 275Mpa
- 4D elongation: Ntau dua lossis sib npaug li 20%
- Kev txo qis ntawm cheeb tsam: Ntau dua lossis sib npaug li 30%
- Kev xa khoom: Kub-lub xeev ua tiav (R) / txias- xeev txheej txheem (Y) / lub xeev annealed (M), txiav txim siab raws li cov neeg siv khoom xav tau
- Kev kho deg: tshuab polishing, sib tsoo polishing, sandblasting
- Daim ntawv thov:Chemical Process Equipment, Fluid Handling Systems, Electrochemical Devices, Marine Engineering
Tshuaj muaj pes tsawg leeg (Ti-0.2Pd Alloy)
- Titanium (Ti): Sib npaug
- Palladium (Pd): 0.12-0.25%
- Hlau (Fe): Tsawg dua lossis sib npaug rau 0.30%
- Oxygen (O): Tsawg dua lossis sib npaug li 0.25%
- Carbon (C): Tsawg dua lossis sib npaug rau 0.08%
- Nitrogen (N): Tsawg dua lossis sib npaug rau 0.03%
- Hydrogen (H): Tsawg dua lossis sib npaug rau 0.015%
Qib 7 titanium bars Ntim & Xa

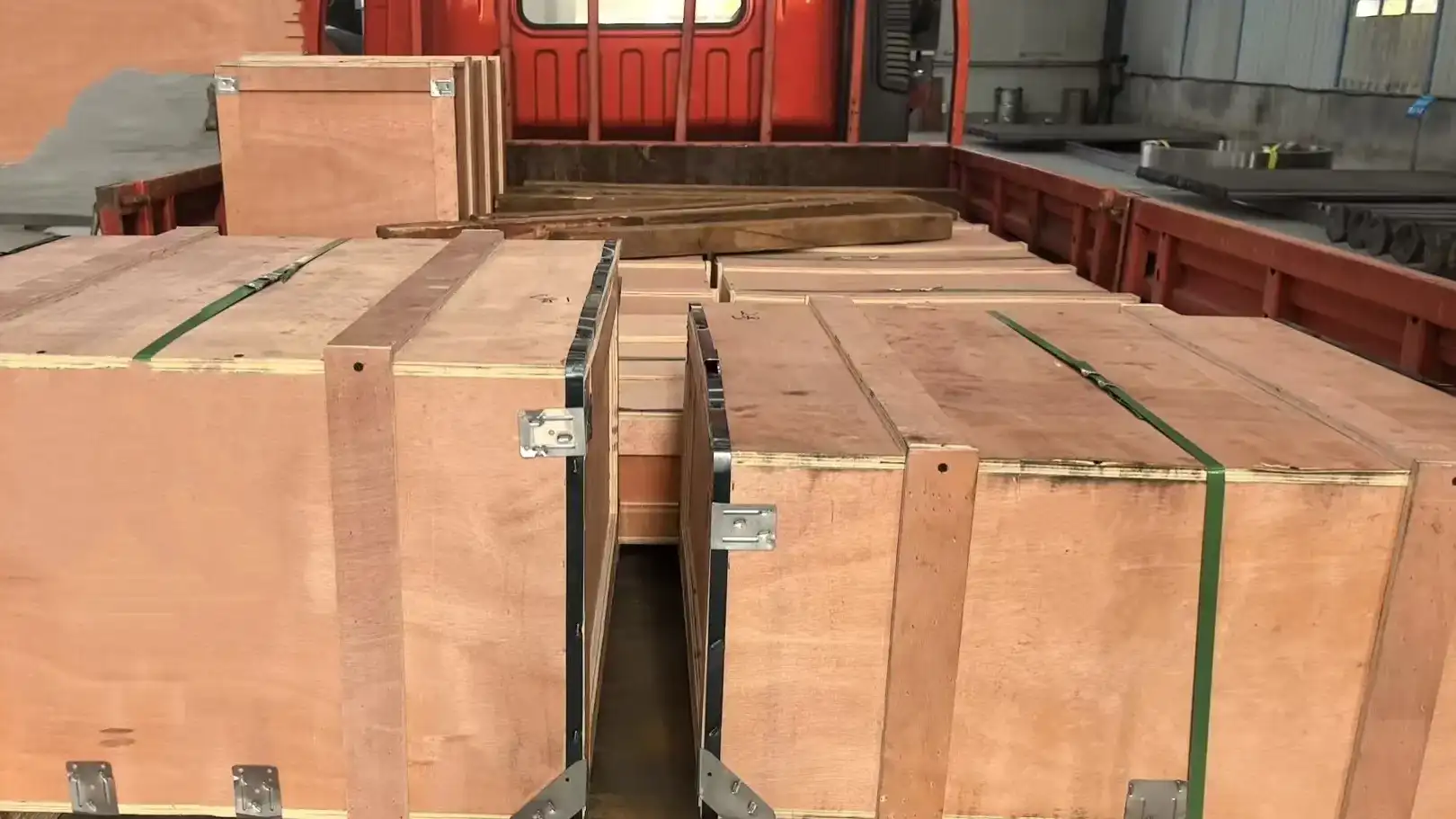

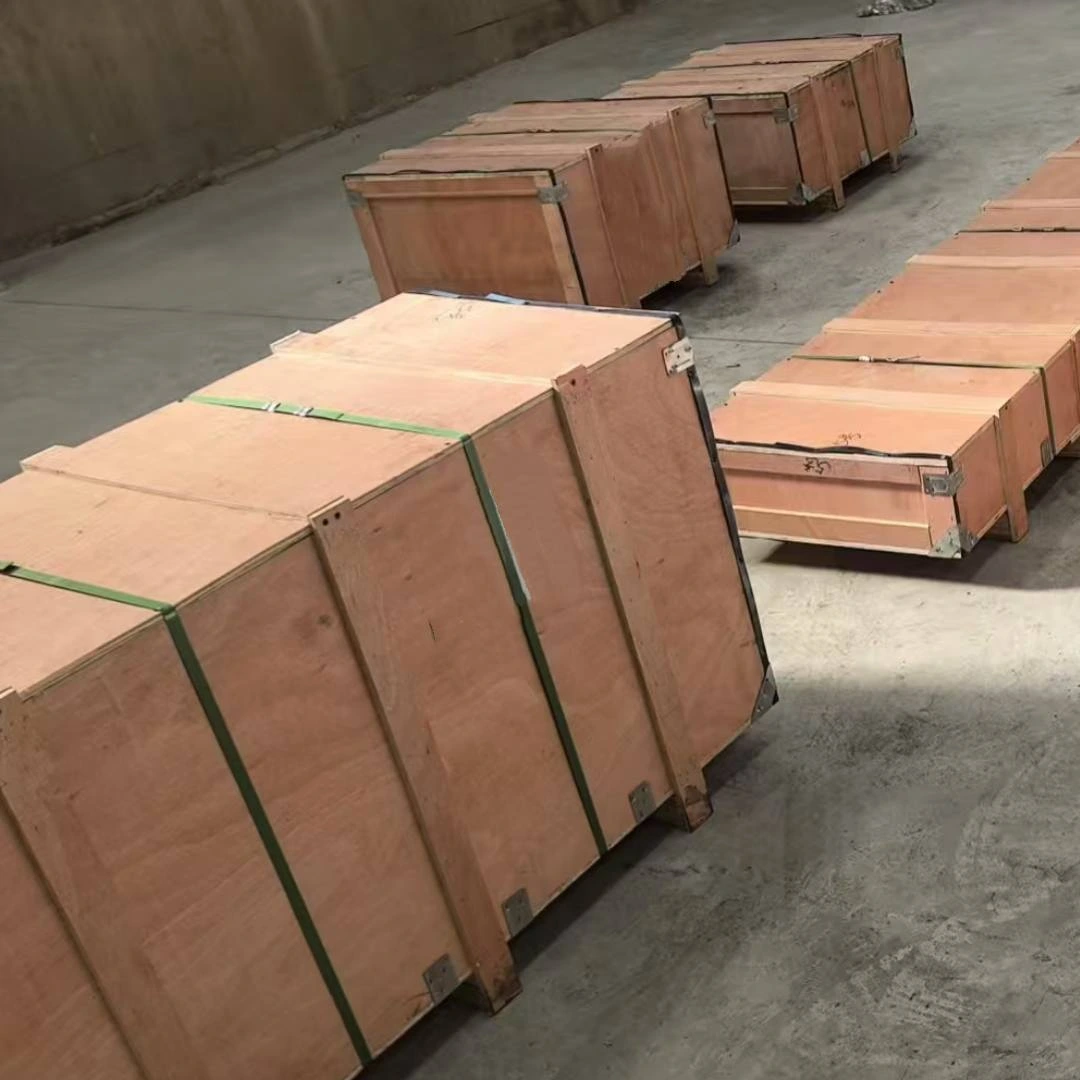

Ntim Solutions
- Txhua lub titanium bar yog ib tus zuj zus qhwv hauv cov ntawv tiv thaiv- xeb kom ntseeg tau tias muaj kev tiv thaiv corrosion thaum lub sijhawm thauj mus los.
- Cov kaus mom yas yog siv rau ntawm ob qho kawg ntawm qhov bar kom tiv thaiv kev puas tsuaj rau lub cev.
- Cov tuav tau ruaj ntseg ntawm cov ntoo pallets thiab sib cais nrog cov khoom tiv thaiv -cov ntaub pua plag kom ruaj khov.
- Waterproof yas zaj duab xis yog siv los qhwv cov tuav, uas muaj kev ruaj ntseg nrog cov hlua hlau los tiv thaiv kev puas tsuaj thaum thauj.
- Txhua pob tau sau meej meej nrog cov khoom siv, batch naj npawb, qhov ntev, thiab lwm yam ntaub ntawv cuam tshuam.
Shipping Assurance
Factory Test Certificate (MTC) yog muab nrog txhua yam khoom xa tuaj.
FOB / CIF shipping nqe lus muaj rau cov chaw nres nkoj loj thoob ntiaj teb.
Cov kev pabcuam Airfreight muaj rau kev txiav txim sai kom ntseeg tau tias xa khoom raws sijhawm.
Peb pab nrog kev lis kev cai clearance thiab muab tag nrho cov ntaub ntawv tsim nyog thaum tuaj txog.
Teeb meem
Qib 7 titanium siv rau dab tsi?
Cov khoom siv tshuaj ua haujlwm xws li reactors, cov khoom siv hluav taws xob sib hloov, thiab cov dej tuav cov tshuab, nrog rau cov tshuab ua dej hiav txwv thiab dej hiav txwv.
Koj puas muaj Qib 7 Titanium Rods Tshuag?
Peb npaj qee qhov ntau thiab tsawg tus qauv, tab sis txij li Qib 7 feem ntau yog siv rau hauv cov ntawv thov, feem ntau cov kev txiav txim yog tsim los ntawm cov neeg siv khoom kos duab thiab specifications. Hu rau peb pab neeg muag khoom kom muaj los yog muab cov qauv txiav txim.
Dab tsi ua rau Qib 7 titanium txawv ntawm Qib 2 titanium bar?
Qib 7 muaj palladium, uas txhim kho kev tiv thaiv kom tsis txhob muaj cov kua qaub thiab chloride-induced corrosion piv rau Qib 2.
Koj puas muab kev kho qib 7 titanium pas nrig?
Yog lawm. Peb muab tag nrho cov kev pabcuam machining, los ntawm kev txiav mus rau kev sib tsoo thiab kev sib tsoo zoo, rau ob qho tib si tus qauv thiab kev cai - qhov loj me. Qhov no pab cov neeg siv khoom txuag lub sijhawm thiab txo cov nqi tag nrho. Thov muab koj cov duab kos rau kev ntsuam xyuas thiab hais tawm.
Vim Li Cas Xaiv Peb Qib 7 Titanium Bar Chaw Muag Khoom
Qhov Chaw Chaw Tsim Khoom Advantage

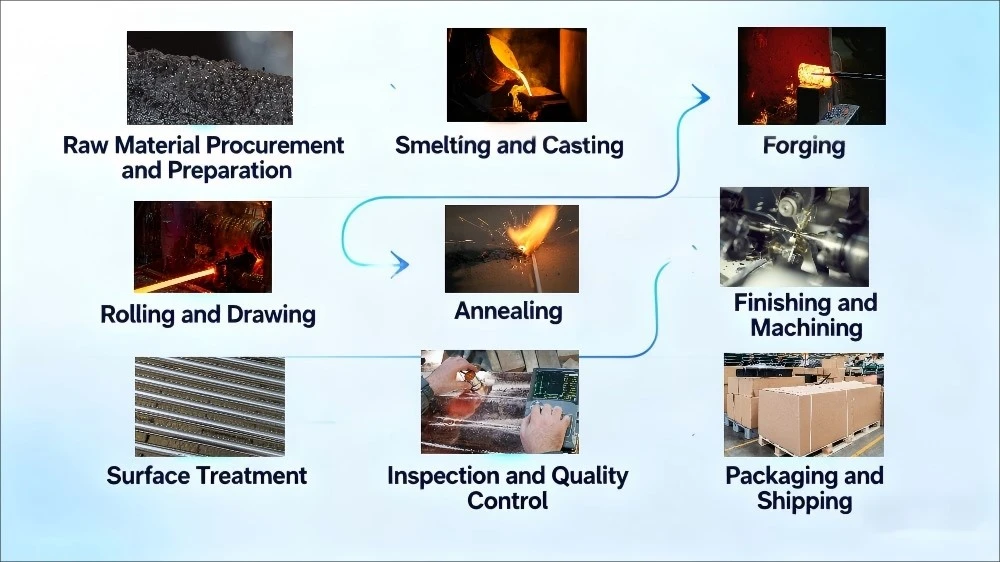

Peb tswj tag nrho cov saw hlau los ntawm melting, forging, kho cua sov rau machining, kom ruaj khov zoo thiab tag nrho traceability.
Nrog dhau2,000+ tons txhua xyoo muaj peev xwmthiab30+ CNC machining tshuab, peb txhawb nqa ob tus qauv thiab customized titanium bar ntau lawm nrog ruaj khov khoom thiab scalable tso zis.
Txhua pawg ntau lawm ua raws li cov txheej txheem tswj hwm nruj, suav nrog cov ntawv sau tseg xws li:
- Melting cycles thiab lub sijhawm
- Forging kub thiab ntev
- Upsetting thiab kos duab voj voog
- Lub sijhawm kho cua sov
- Cov ntsiab lus tshuaj xyuas thiab lub sijhawm kuaj
Tag nrho cov ntaub ntawv yog sau tseg nyob rau hauv ib tug ntau lawm flow daim ntawv, xyuas kom meej tag nrho cov txheej txheem traceability.
Txhim khu kev ruaj ntseg
Tag nrho cov khoom yog tsim nyob rau hauv ISO 9001 thiab AS9100 (aerospace zoo tswj system) nrog tag nrho batch traceability.
Kev ntsuam xyuas muaj xws li tshuaj muaj pes tsawg leeg, txhua yam khoom, kev tshuaj xyuas qhov ntev, thiab qhov zoo ntawm qhov chaw. Thib peb-kev tshuaj ntsuam xyuas (SGS/BV) muaj nyob rau ntawm qhov kev thov.
Muaj peev xwm tsim tau yooj yim
Peb txhawb nqa me me batch txiav txim, kev cai qhov ntev, thiab precision machining cov kev pab cuam kom tau raws li cov kev cai sib txawv.
