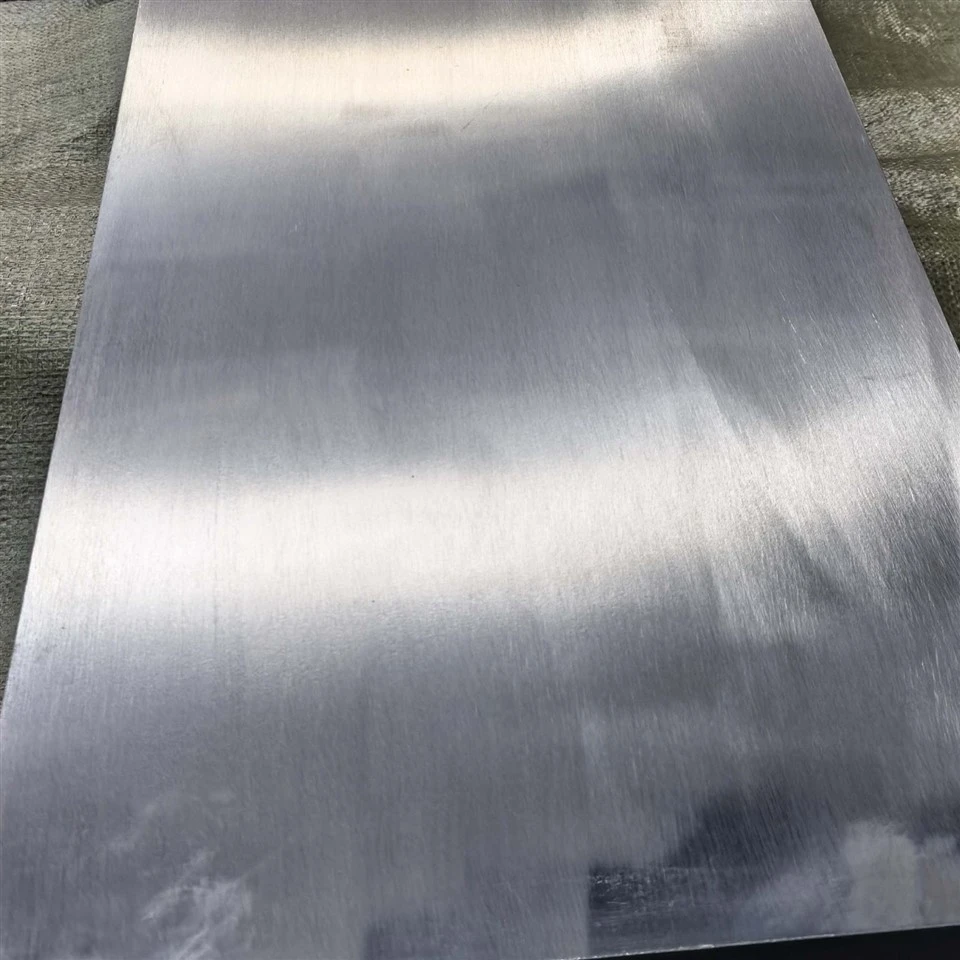

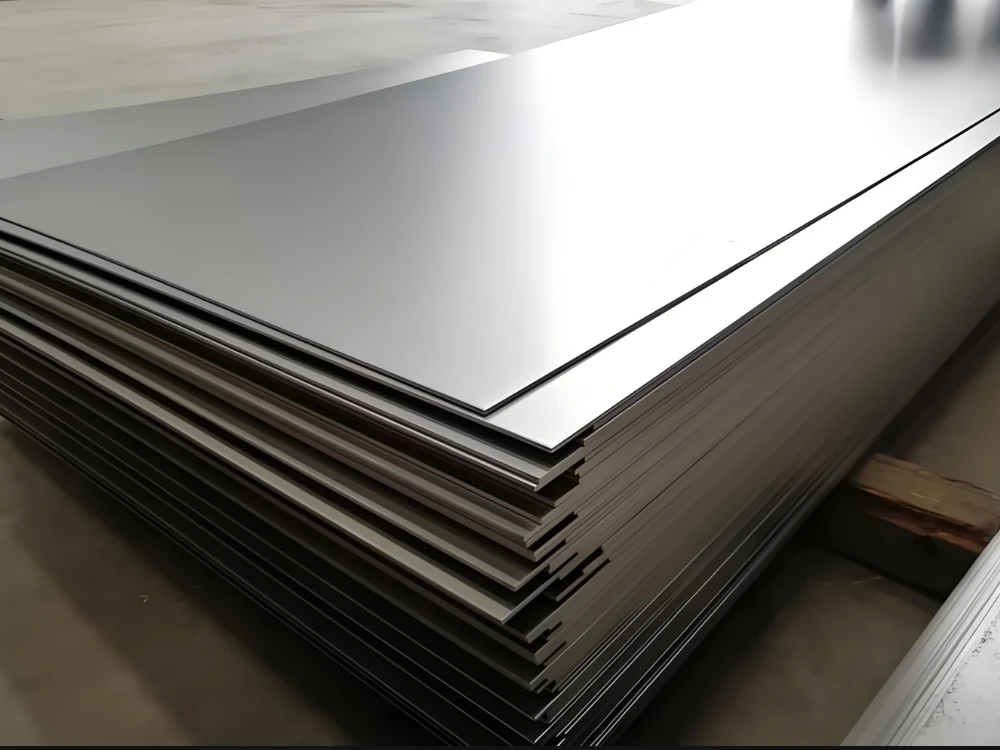

Qib 12 Titanium Phaj Chaw Tsim Tshuaj & Chaw Muag Khoom
Yog tias koj cov khoom siv ua haujlwm ua haujlwm hauv hydrochloric acid, sulfuric acid, lossis chloride-ib puag ncig kev pabcuam nplua nuj, kev xaiv cov khoom cuam tshuam ncaj qha rau cov peev thiab cov nqi ua haujlwm. Qib 12 titanium muab:
- Lub neej ua haujlwm ntev dua li cov hlau tsis muaj steel nyob rau hauv tib yam corrosive
- Kev saib xyuas qis dua piv rau cov titanium uas tsis muaj hlau
- Txhim khu kev qha fabricability rau tshav kub exchanger raj nplooj ntawv, reactor internals, thiab siab hlab ntsha Cheebtsam
Customization Qib 12 titanium alloy phaj
Koj tuaj yeem xaj cov qauv loj lossis cov ntaub ntawv kho kom haum rau qhov project-raws li qhov yuav tsum tau ua.
|
Yam khoom |
Ntau yam |
|
Thickness |
0.4mm-60mm |
|
Dav |
400-3000 hli |
|
Ntev |
1000mm-6000mm |
Peb kuj muab:
- Kev cai txiav - mus rau - daim hlau ntev
- Tshwj xeeb kam rau ua
- Tsis yog - qhov loj me
- Project batch tswj
Txawm hais tias koj xav tau me me rau kev tsim khoom lossis ntim loj rau cov phiaj xwm cog tshuaj, peb tuaj yeem phim koj cov kev xav tau thiab kev lag luam.
ASTM B265 Qib 12 - Tshuaj muaj pes tsawg leeg & Mechanical Properties
Cov ntawv thov ntawm Qib 12 Titanium alloy phaj

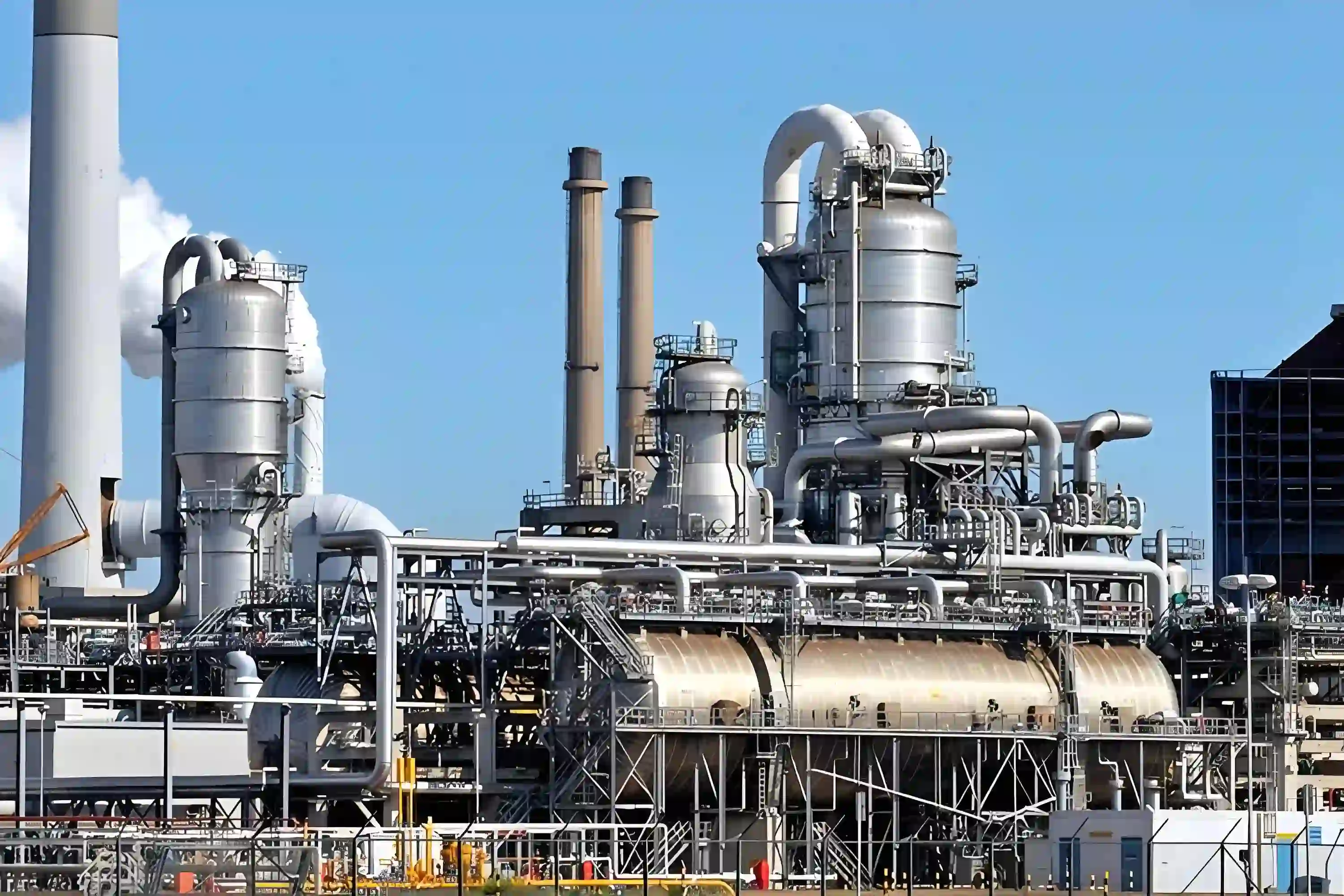

Kev lag luam tshuaj thiab Petrochemical
Thaum tshav kub kub exchangers
Tshuaj reactors
Cov hlab ntsha siab
Lub tank cia
Cov txheej txheem cov cuab yeej raug corrosive media
Khoom siv
Corrosion-cov kav dej thiab fittings
Electroplating systems
Chemical processing systems
Electronic hardware
Cov qauv thiab machined industrial qhov chaw
Yog tias koj cov cuab yeej ua haujlwm hauv acidic, chloride- nplua nuj, lossis muaj tshuaj lom neeg ib puag ncig, Qib 12 muaj kev pab cuam lub neej ntev dua thiab qis dua tus nqi kho dua li stainless hlau lossis titanium ntshiab.
Qib 12 vs Lwm Qib Titanium
| Khoom / Parameter | Qib 2 (CP Ti) | Qib 5 (Ti-6Al-4V) | Qib 12 (Ti-0.3Mo-0.8Ni) |
|---|---|---|---|
| Alloy hom | Kev lag luam ntshiab titanium | + ob-phase alloy | Ze ntawm - titanium alloy (Mo + Ni ntxiv) |
| Tensile zog (tseem ceeb) | ~ 345 MPa | ~ 895-1000 MPa | ~ 483-550 MPa |
| Yield zog (tus qauv) | ~ 275-450 MPa | ~ 828-900 MPa | ~ 345-480 MPa |
| Elongation | Zoo (20-28%) | Ncaj ncees (10-15%, kub sib sau yuav tsum) | Zoo (18-22%, txias formable) |
| Corrosion kuj nyob rau hauv txo acids | pluag | Nruab nrab | Zoo heev (Mo+Ni txhim kho) |
| Corrosion kuj | Zoo | Zoo | Zoo (me ntsis zoo dua CP) |
| Weldability | Zoo heev | Yuav tsum tau muaj kev saib xyuas (tsim muaj cov roj thaiv thaiv, tom qab-weld kev kho cua sov yuav tsum tau) | Zoo (kev pom zoo muab tub lim) |
| Tej kev siv | Seawater desalination, chlor-kev lag luam alkali, cov raj kub exchanger | Aerospace cov qauv, siab -kev ua tau zoo txhua yam, kev kho mob cog | Tshuaj reactors, kub exchangers, siab hlab ntsha, piping rau acidic media |
| Tus nqi txheeb ze | Baseline (qis tshaj) | Siab (20–40% ntau dua Qib 12) | Nruab nrab (siab dua Qib 2, qis dua Qib 5) |
Qib 12 tsis yog qhov muaj zog tshaj plaws, tsis yog qhov pheej yig tshaj, tab sis nws yog tus nqi tshaj plaws -cov khoom siv titanium zoo rau cov kua qaub thiab txo cov xwm txheej hauv xov xwm.
Yog tias koj cov khoom siv los rau hauv kev sib cuag nrog dilute sulfuric acid, dilute hydrochloric acid, los yog acidic txheej txheem dej, Qib 12 muaj kev cuam tshuam lub neej ntev dua li Qib 1 lossis 2, ntawm tus nqi qis dua Qib 5, thiab nrog kev tsim tau zoo dua.
Vim li cas thiaj xaiv Baoji Zecheng Hlau Khoom Co., Ltd.?
Thaum kojyuav Qib 12 Titanium PhajLos ntawm Zecheng, koj tau txais:
- Stable Ti-Mo-Ni alloy chemistry
- batch zoo heev-rau-batch sib xws
- nruj ISO 9001 & EN 9100 kev tswj kom zoo
- Daim ntawv qhia txog kev xeem tag nrho (MTC)
- Txhim khu kev xa khoom thoob ntiaj teb
FAQ
Q1: Koj qhov kev txiav txim yam tsawg kawg nkaus (MOQ) rau titanium phaj yog dab tsi?
Tsis muaj MOQ ruaj khov. Peb lees txais kev txiav txim me me (piv txwv li, ib daim ntawm kev txiav - mus rau - loj phaj) nrog rau kev txiav txim loj ntim ntau lawm. Rau qhov ntau thiab tsawg, MOQ feem ntau yog 100-200 kg, tab sis peb hloov tau rau cov qauv lossis qauv thov.
Q2: Koj lub sijhawm ua haujlwm yog dab tsi?
- Qhov ntau thiab tsawg ntawm Tshuag (hom thickness / dav): 7-15 hnub
- Kev cai qhov ntau thiab tsawg lossis tshwj xeeb kam rau ua: 20-30 hnub
Q3: Yuav ua li cas koj ntim Qib 12 titanium alloy daim hlau rau cov khoom xa tuaj?
- Sab hauv: tiv thaiv- ntawv xeb + yas zaj duab xis
- Sab nrauv: plywood rooj los yog ntoo pallets nrog steel strapping
- Ntug tiv thaiv rau daim hlau txiav
- Marking: qib, qhov loj me, tus naj npawb ntawm cov cua sov, qhov hnyav
Tag nrho cov ntim tau raws li cov qauv xa tawm thoob ntiaj teb thiab tsim nyog rau kev thauj khoom hiav txwv lossis huab cua.
