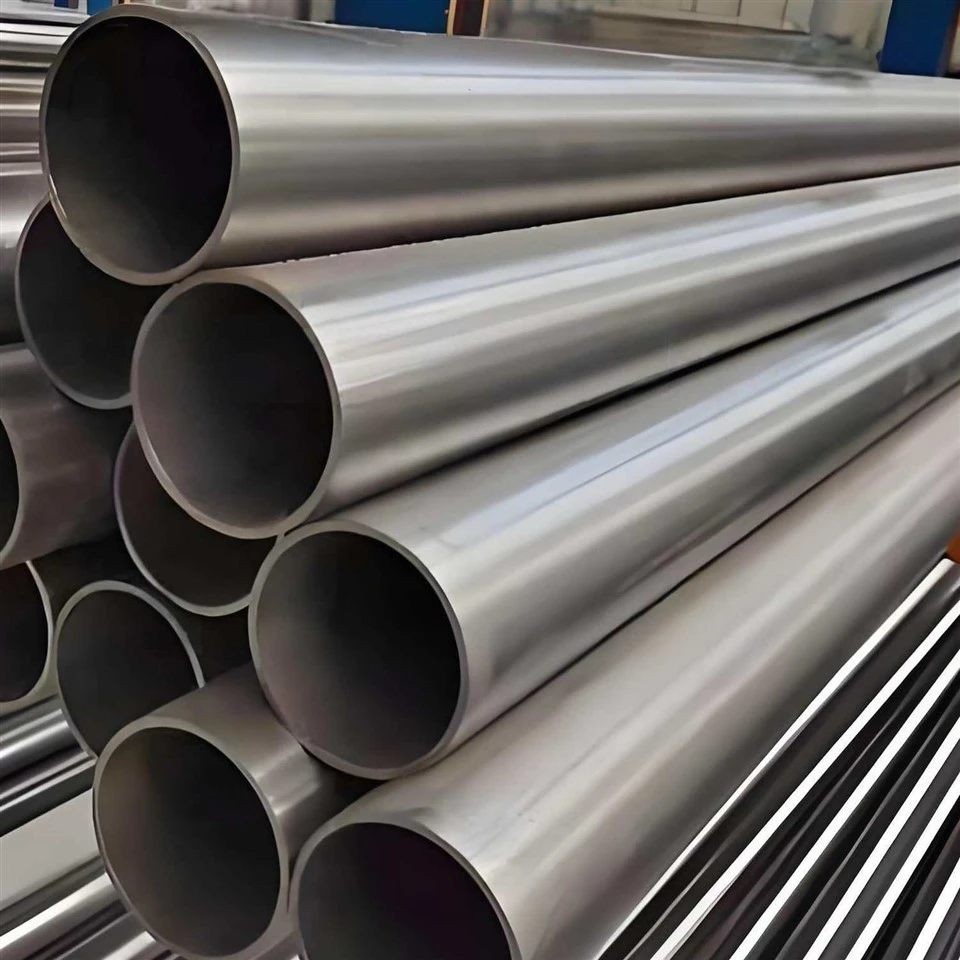

ASTM B337 Titanium yeeb nkab - Seamless thiab Welded xaiv
Nrhiavtitanium cov kav dejuas muaj kev tiv thaiv corrosion zoo heev thiab zoo tagnrho rau siab -kev pabcuam kub? PebASTM B337 Titanium rajyog tsim los rau cov ntawv thov uas huab cua siab lossis cyclic thermal stresses tsis yog thawj qhov kev txhawj xeeb. Cov kav dej no zoo meej rau kev lag luam xws li kev lag luam tshuaj, roj thiab roj, kev tsim hluav taws xob, thiab ntau lwm yam, muab kev ua tau zoo nyob rau hauv kev xav tau.
Peb cov ASTM B337 Titanium tubes ua tau raws li cov cai hauv qab no:
|
Element |
Qib 1 (%) |
Qib 2 (%) |
Qib 3 (%) |
Qib 7 (%) |
Qib 9 (%) |
Qib 11 (%) |
Qib 12 (%) |
|
Nitrogen (N) |
0.03 |
0.03 |
0.05 |
0.03 |
0.02 |
0.03 |
0.03 |
|
Cov pa roj carbon (C) |
0.10 |
0.10 |
0.10 |
0.10 |
0.05 |
0.10 |
0.08 |
|
Hydrogen (H) |
0.015 |
0.015 |
0.015 |
0.015 |
0.013 |
0.015 |
0.015 |
|
Hlau (Fe) |
0.20 |
0.30 |
0.30 |
0.30 |
0.25 |
0.20 |
0.30 |
|
Cov pa oxygen (O) |
0.18 |
0.25 |
0.35 |
0.25 |
0.12 |
0.18 |
0.25 |
|
Palladium (zeeg) |
- |
- |
- |
0.12-0.25 |
- |
0.12-0.25 |
- |
|
Aluminium (Al) |
- |
- |
- |
- |
2.5-3.5 |
- |
- |
|
Molybdenum (hli) |
- |
- |
- |
- |
- |
- |
0.2-0.4 |
|
Vanadium (V) |
- |
- |
- |
- |
2.0-3.0 |
- |
- |
|
Nickel (Ni) |
- |
- |
- |
- |
- |
- |
0.6-0.9 |
ASTM B337 Titanium Pipes Manufacturing Txheej txheem
Seamless yeeb nkab ntau lawm
Tsim siv extrusion los yog Pilger dov txheej txheem los xyuas kom meej cov qauv zoo ib yam. Zoo tagnrho rau kev siv siab -siab.
Welded yeeb nkab ntau lawm
Tsim los ntawm dov titanium daim hlau rau hauv cov kav dej thiab vuam cov npoo, kom ntseeg tau qhov kev tswj xyuas meej thiab qhov chaw tiav
Manufacturing Workflow:
Kev npaj cov khoom → Billet txiav → Ncaj → Txias kos duab → Txiav → Kev kho deg → Kev soj ntsuam zoo → ntim thiab cia.
ASTM B337 titanium tubing Kev ruaj ntseg zoo
- Tshuaj ntsuam xyuas muaj pes tsawg leeg
- Kev ntsuas cov cuab yeej cuab tam, suav nrog lub zog tensile, lub zog tawm los, thiab elongation
- Hydraulic los yog pneumatic xeem
- Kev ntsuam xyuas flattening thiab khoov
- Kev tshuaj xyuas qhov muag kom ntseeg tau tias tsis muaj qhov tsis xws luag xws li tawg lossis khawb
Vim li cas thiaj xaiv peb ASTM B337 Titanium Pipes?
- Kev cob qha Hoobkas: 15 Xyoo ntawm kev txawj ntse hauv Titanium khoom Manufacturing
- Custom Dimensions: Peb muab cov kev xaiv hloov kho kom haum raws li cov kev xav tau tshwj xeeb.
- Tag Nrho Traceability: Peb cov khoom tuaj nrog ua tiav traceability thiab peb tuaj yeem muab cov ntaub ntawv cuam tshuam raws li kev thov.
- Thib peb-Kev Tshuaj Xyuas Ib Tug: Tag nrho cov khoom lag luam raug kuaj xyuas los ntawm kev lees paub thib peb- tog neeg soj ntsuam cov koom haum ua ntej xa khoom kom ntseeg tau tias qhov zoo tshaj plaws.
Txawm koj xav tauseamless titanium kavrau siab - cov ntawv thov siab lossiswelded titanium kavrau tus nqi -kev xeb zoo- cov tshuab tiv thaiv, peb cov khoom xa tuaj yeem ua tau zoo txawm tias nyob hauv qhov chaw xav tau tshaj plaws.
Rau cov nqi tshwj xeeb, lub sijhawm ua haujlwm, lossis kev sib tham txog kev ua haujlwm,xav tias dawb hu rau peb pab neeg muag khoom.Peb ib txwm nyob ntawm no los pab koj.
Cim npe nrov: Tuam Tshoj astm b337 titanium yeeb nkab manufacturers, lwm tus neeg, Hoobkas
