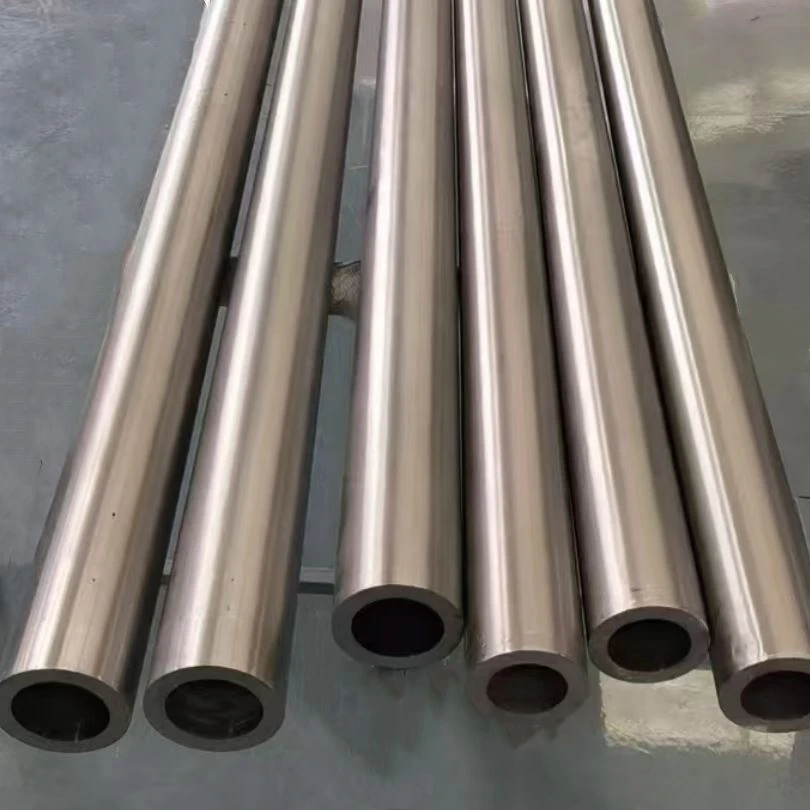

Qib 2 Titanium Tube (UNS R50400) Chaw tsim tshuaj paus
Zecheng Hlau tshwj xeeb hauv kev muab ntau yam ntawm Qib 2 titanium alloy khoom, suav nrog seamless thiab welded hlab, titanium tuav, thiab titanium forgings. Cov khoom no yog tsim thiab tshuaj xyuas nruj raws li kev lees paub thoob ntiaj teb cov qauv xws li ASTM thiab AMS.
Qib 2 titanium alloy (UNS R50400) yog - hom titanium alloy nrog ib zaug -theem microstructure, nthuav tawm zoo heev corrosion kuj thiab ductility thaum tuav lub zog nruab nrab. Lub ntsiab impurity theem nyob rau hauv cov khoom yog nruj me ntsis tswj, nrogCov ntsiab lus hlau tsawg dua lossis sib npaug li 0.30%, cov ntsiab lus oxygen tsawg dua lossis sib npaug li 0.25%, thiab cov ntsiab lus carbon tsawg dua lossis sib npaug li 0.08%,ua kom cov khoom ruaj khov thiab txhim khu kev qha uas ua tau raws li qhov xav tau ntawm siab - cov ntawv thov kev lag luam.
Qib 2 Titanium Tubing Loj Ntau thiab Phab Ntsa Thickness Options
Peb muab ntau yam ntawm sab nraud diameters thiab phab ntsa thicknesses kom haum raws li kev xav tau ntawm engineering:
|
OD (hauv) |
OD (mm) |
Thin Wall (hauv) |
Phab ntsa nyias (mm) |
Phab ntsa nruab nrab (hauv) |
Phab ntsa nruab nrab (mm) |
Thick Wall (hauv) |
Phab ntsa tuab (mm) |
|
0.375" |
9.53 |
0.031" |
0.79 |
0.047" |
1.19 |
0.063" |
1.60 |
|
0.875" |
22.23 |
0.047" |
1.19 |
0.078" |
1.98 |
0.095" |
2.41 |
|
1.625" |
41.28 |
0.078" |
1.98 |
0.109" |
2.77 |
0.140" |
3.56 |
|
2.875" |
73.03 |
0.109" |
2.77 |
0.165" |
4.19 |
0.218" |
5.54 |
|
4.000" |
101.60 |
0.158" |
4.01 |
0.203" |
5.16 |
0.276" |
7.01 |
|
4.750" |
120.65 |
0.177" |
4.50 |
0.237" |
6.02 |
0.306" |
7.77 |
Qib 2 Titanium Tube Properties
- Melting Point: 1660-1725 degree
- Thermal conductivity: 15.24 W / (m·K)
- Qhov ceev: Kwv yees li 4.51 g / cm³
- Tensile Strength (UTS): Yam tsawg kawg 50 ksi (345 MPa)
- Yield zog (YS): Yam tsawg kawg nkaus 40 ksi (275 MPa)
- Elongation (ntev.): Tsawg kawg 20%
- Machining thiab Vuam Muaj peev xwm:
- Txiav: Yooj yim sawed lossis txiav nrog cov cuab yeej sib tsoo
- Machining: Zoo heev rau kev xa, milling, thiab drilling txheej txheem
- Vuam: High-weldability zoo nrog ruaj khov ncej-weld zog
|
ASTM |
Tuam Tshoj (GB/T) |
DIN Txuj |
UNS Txuj |
|
Qib 2 |
TA 2 |
3.7035 |
UNS R50400 |
UNS R50400 Titanium Tubing Daim Ntawv Thov
- Cov Khoom Siv Tshuaj: Kub Exchangers, Condensers, Piping Systems
- Marine Engineering: Desalination Equipment, Shipbuilding, Offshore Platforms
- Kev Kho Mob: Cov cuab yeej phais, Kev cog hniav (vim nws zoo heev biocompatibility)
- Khoom noj khoom haus thiab tshuaj: Hygienic Piping thiab Equipment
Cov lus pom zoo siv
- Rau ib puag ncig mus txog 300 degree, qib no ua lag luam ntshiab titanium muaj qhov zoo tshaj plaws sib npaug ntawm lub zog thiab corrosion kuj.
- Rau qhov kub siab dua (315-400 degree), Qib 5 Ti-6Al-4V raug pom zoo.
FAQ
Q: Qhov txawv ntawm Qib 1, Qib 2, thiab Qib 3 titanium yog dab tsi?
Tag nrho peb yog cov khoom lag luam ntshiab titanium qib. Qib 1 muaj qhov zoo tshaj plaws formability, Qib 2 muab qhov zoo tshaj plaws sib npaug ntawm lub zog thiab corrosion kuj, thaum Qib 3 muaj zog dua tab sis qis formability. Rau feem ntau cov ntawv thov kev lag luam, Qib 2 yog qhov kev xaiv zoo dua.
Q: Vim li cas rov qab purging yuav tsum tau thaum lub sij hawm titanium raj vuam?
Titanium reacts sai nrog oxygen, nitrogen, thiab hydrogen ntawm qhov kub thiab txias. argon shielding kom zoo yog qhov tseem ceeb los tiv thaiv kev kis kab mob thiab tswj cov vuam zoo, ductility, thiab corrosion kuj.
Q: Dab tsi yog qhov muab tub lim hlau pom zoo rau vuam?
ERTi-2 muab tub lim yog feem ntau siv thaum welding lag luam ntshiab titanium. GTAW (TIG welding) yog cov txheej txheem nyiam kom ua tiav cov vuam zoo.
Cim npe nrov: Qib 2 titanium raj, Tuam Tshoj qib 2 titanium raj manufacturers, lwm tus neeg, Hoobkas
