Qib 5 Titanium Forgings

Qib 5 Titanium Forgings

Khoom siv: Ti-6Al-4V Titanium Alloy
Cov Qauv: ASME SB381, ASTM B381, GB / T 16598, AMS 4920B, AMS 4928, AMS6930
Lub sij hawm xa tuaj: Nyob ntawm kev txiav txim kom muaj nuj nqis thiab ntau lawm complexity, thov hu rau peb kom paub meej.
Daim ntawv: Titanium Discs, Titanium Rings, Titanium Shafts, Titanium Bar thiab kev cai duab
Daim ntawv pov thawj: ISO9001 & EN9100
Xa kev nug
Ces

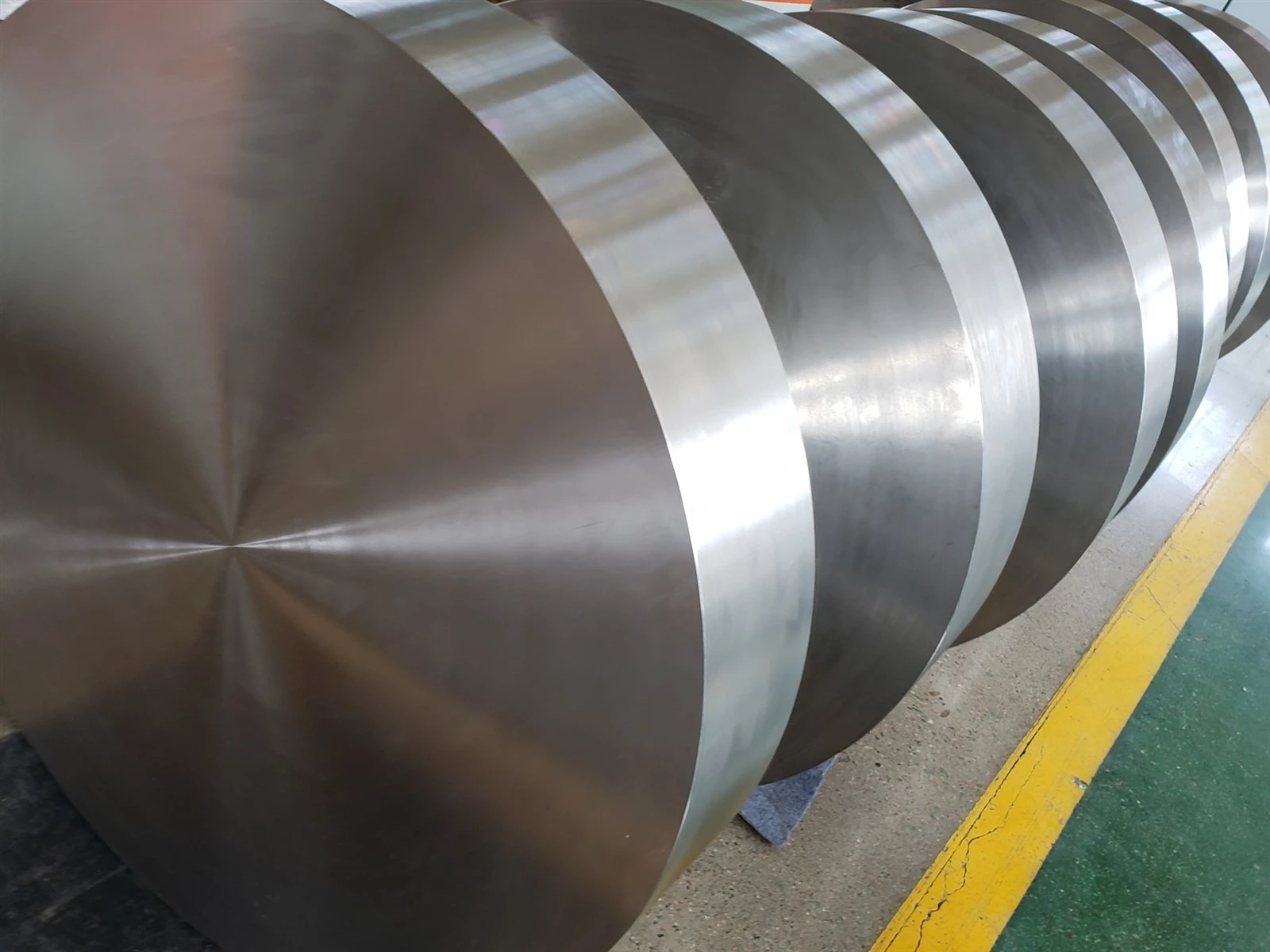

Grade 5 titanium forgings factory



Vim li cas Qib 5 Titanium Forgings teeb meem





Qib 5 titanium forgingsaccount rau txog 60% ntawm peb tag nrho titanium forging tso zis. Muaj ib qho laj thawj meej rau qhov ntawd.

Thaum tus kws ua haujlwm nug kuv txog ib qho khoom siv uas muab lub zog siab, qhov hnyav, thiab qaug zog tsis muaj kev lag luam loj -offs, kuv taw tes rau peb Ti-6Al-4V forgings. Tsis yog vim nws yog qhov kev xaiv nkaus xwb - tab sis vim tias nws tau ua pov thawj tsis tu ncua txhim khu kev qha thoob plaws aerospace, marine, thiab hnyav-duty industrial applications qhov twg tsis ua haujlwm tsuas yog tsis muaj kev xaiv.

Qib 5 Titanium alloy Forgings yog dab tsi?





Qib 5 titanium alloy forgings yog cov khoom tsim los ntawm Ti-6Al-4V alloy - kwv yees li 5.5-6.75% aluminium, 3.5-4.5% vanadium, sib npaug titanium. Lawv raug forged rau hauv discs, rings, shafts, tuav, thiab cov duab kev cai, thiab tau ntawv pov thawj rau ASME SB381, ASTM B381, AMS 4928, thiab lwm yam qauv siv nyob ntawm seb yuav tsum tau ua.

Muaj zog dua aluminium. Lighter dua hlau. Ntau corrosion-resistant dua ob qho tib si.


Raws li -Forged vs. Standard Requirements





Parameter Zecheng Hlau (Hloov ntau yam) ASTM B381 / AMS 4928 Yuav tsum tau muaj
Tensile zog (MPa) 930 – 1000 Ntau dua lossis sib npaug rau 895
Yield zog (MPa) 860 – 920 Ntau dua lossis sib npaug rau 828
Elongation (%) 13 – 18 Ntau tshaj los yog sib npaug rau 10
Txo thaj tsam (%) 32 – 44 Ntau dua lossis sib npaug li 25

Kev ntsuam xyuas tau ua raws li ASTM E8 / E8M. Cov txiaj ntsig zoo yog raws li cov ntaub ntawv ntau lawm los ntawm 12 lub hlis dhau los.



Ti-6Al-4V Qib 5 Forgings - Specification Txheej txheem cej luam



Tshuaj muaj pes tsawg leeg:
  • 6% Aluminium, 4% Vanadium, sib npaug titanium

Nto tiav
  • Machined, Anodized, Sandblasted

Kev kho cua sov
  • Annealed (M)

Txheej txheem Forging
  • Qhib Tuag Forging, Kaw Tuag Forging, Nplhaib Rolling, Dawb Forging
Qhov ceev (g / cm³)
  • 4.43
Hardness (HB)
  • 300–340
Elastic Modulus (GPa)
  • 114
Cov qoob loo loj
  • 5or zoo
Max forging hnyav (qhib tuag)
  • 7 000kg
Max lub nplhaib OD
  • 5000 hli
Max ncej ntev
  • 8000 hli
Min phab ntsa thickness (kaw tuag)
  • 8mm ib



Cov chaw thov





  • Aerospace titanium forgings rau cov khoom siv, cav qhov chaw, thiab tsaws iav tshuab
  • Muaj titanium daim ntaub ntawv rau siab - lub zog structural thiab load-cov kabmob Cheebtsam
  • Marine corrosion-tiv taus titanium qhov chaw rau seawater kev pab cuam, offshore systems, thiab underwater khoom
  • Chemical processing components for heat exchangers, pressure vessels, and piping systems





Advanced Manufacturing Capabilities



  1. CNC machining, milling, thiab tig.
  2. Txhawb qhib- tuag forging, kaw- tuag forging, nplhaib dov, thiab cov txheej txheem forging dawb.
  3. Tag nrho cov khoom tau dhau 100% kev tshuaj xyuas qhov ntev, tshuaj ntsuam xyuas cov khoom sib xyaw, kev ntsuas khoom siv tshuab, thiab tsis yog -kev kuaj kev puas tsuaj (NDT) kom ua tau raws li cov qauv thoob ntiaj teb xws li ASME SB381, ASTM B381, thiab AMS 4928.
product-706-811
Test Report

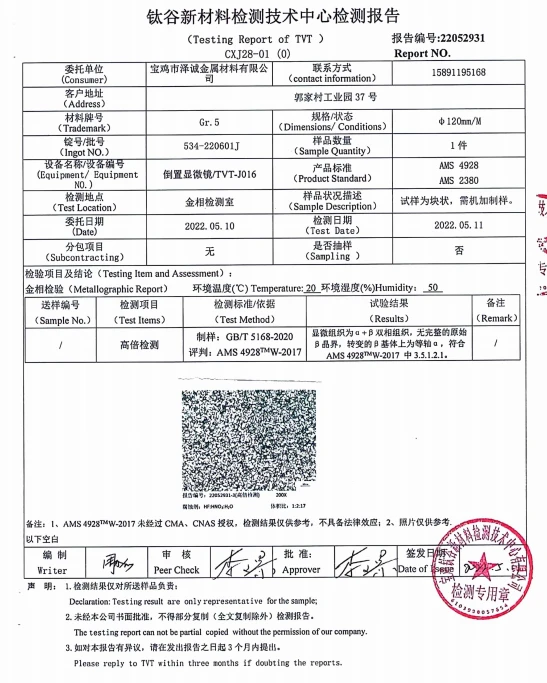

product-547-683
Test Report

FAQ






Koj puas tuaj yeem kho Ti-6Al-4V Titanium Forgings?

Yog lawm. Koj tuaj yeem hloov kho:

  • Tsis yog - qhov loj me
  • nruj tolerances
  • Complex lossis tshwj xeeb geometry
  • Cov khoom me me lossis loj - ntim ntau lawm

Koj puas muab cov qauv dawb?

Rau cov haujlwm tsim nyog, cov qauv dawb titanium forging Qib 5 tuaj yeem muaj, nyob ntawm qhov loj me, muaj nyob hauv Tshuag, thiab kev tshuaj xyuas daim ntawv thov.
Thov hu rau peb nrog koj cov lus qhia txog qhov project kom peb tuaj yeem ntsuas qhov ua tau.

Txaus siab rau Titanium Forgings lossis lwm yam titanium forging khoom?

Tiv tauj peb hnub no kom tau txais kev sib tw hais lus thiab kev txhawb nqa kev tshaj lij.

Xov tooj / WhatsApp: +86-138-0917-2622

Email:info@zctitanium.com

Daim ntawv thov Case

1. Khoom: Ti-6Al-4V (Qib 5) Forgings

  • Lub teb chaws: Norway
  • Hnub yuav khoom: Lub Rau Hli 2025
  • Qhov Loj: Ø300mm × 150mm
  • Kev Siv Kawg: Kev saib xyuas hauv qab dej
  • Cov neeg siv khoom tawm tswv yim: Nws tau tuav zoo nyob rau hauv siab thiab ntev - lub sij hawm raug dej hiav txwv.



2. Khoom: Ti-6Al-4V (Qib 5) Forgings

  • Lub teb chaws: Germany
  • Hnub yuav khoom: Lub Ob Hlis 2025
  • Qhov Loj: Ø180mm × 420mm
  • Daim ntawv thov: Industrial twj tso kua mis ncej Cheebtsam
  • Cov Lus Qhia Cov Neeg Siv Khoom: Nws tau ua haujlwm zoo nyob rau hauv ib puag ncig tshuaj corrosive uas tsis muaj qhov pom kev hnav lossis teeb meem corrosion txog tam sim no.
