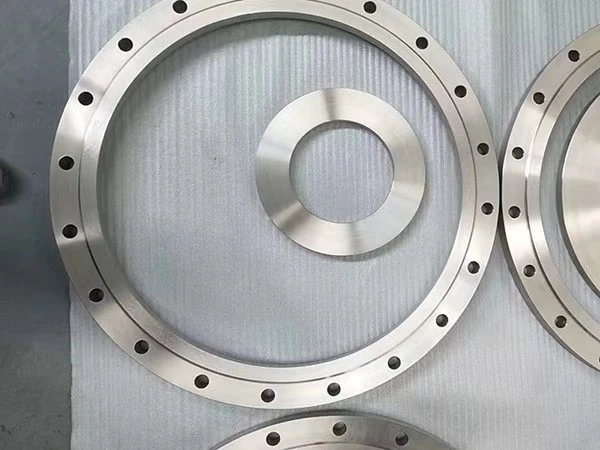

Customizable Titanium Rings - Muaj & Aerospace Daim Ntawv Thov
Peb lub tuam txhab tsim ntau yam titanium rings, xws li GR1, GR2, GR3, GR4, GR5, GR7, GR12, thiab lwm yam, nrog rau ntau yam specifications, txheej diameters li ntawm 200mm mus rau 1500mm, thiab puab diameters thiab heights kuj muab ntau yam kev xaiv. Peb nruj me ntsis ua raws li GB / T 16598, ASME SB381, ASTM B381, thiab lwm yam qauv siv.
Peb qhov chaw nyob
Tsis yog. 37, Guojia Village Industrial Park, Taicheng Road, High-tech Development Zone, Baoji City, Shaanxi Province, Suav.
Xov tooj
+8613809172622
E -mail
Tau txais Quote:info@zctitanium.com
Kev pab txhawb nqa:wanggang@zctitanium.com
Titanium Forged Rings Applications & Kev lag luam siv
Aerospace: siv los tsim cov qauv ntawm cov dav hlau thiab foob pob hluav taws, xws li fasteners, tsaws iav Cheebtsam, thiab lwm yam.
Cov khoom siv kho mob: siv rau hauv siab -kawg cov khoom siv kho mob xws li cov pob qij txha, pob txha pob txha, lub plawv li qub, thiab lwm yam.
Kev lag luam tshuaj: siv los tsim cov tshuaj tiv thaiv corrosion-cov reactors, cov khoom siv hluav taws xob, thiab cov twj tso kua mis valve.
Marine engineering: siv los tsim cov corrosion- tiv thaiv cov qauv ntawm cov nkoj thiab cov chaw tawm ntug dej hiav txwv.
Customization Options
Ntawm Baoji Zecheng Hlau Khoom Co., Ltd., pebTitanium Forged Ringsyog tag nrho customizable kom tau raws li koj specifications.
|
Khoom siv |
Ntshiab titanium, titanium alloy |
|
Qib |
GR1, GR2, GR3, GR4, GR5, GR7, GR11, GR9, GR12, GR16, GR17, GR23, GR26, GR27, GR29 |
|
Kev kho saum npoo |
Polishing, chamfering, brightening, sandblasting, anodizing, txheej, thiab lwm yam. |
|
Loj |
Sab nraud txoj kab uas hla: 200mm-4000mm Sab hauv txoj kab uas hla: 100mm-900mm Hla- qhov siab ntu: 35mm-250mm Phab ntsa thickness: 40mm-400mm |
|
Qhov xwm txheej |
Kub ua haujlwm xeev (R), lub xeev annealed (M) |
|
Cov txheej txheem ntau lawm |
Forging, tuag forging, teb forging, precision forging, thiab vuam |
Tensile zog
|
Qib |
Tensile Lub zog |
Yield zog ntawm 0.2% Offset |
Elongation hauv 4D |
Kev txo qis ntawm cheeb tsam |
||
|
ksi ua |
Mpa |
ksi ua |
Mpa |
% |
% |
|
|
Qib 1 |
35 |
240 |
20 |
138 |
24 |
30 |
|
Qib 2 |
50 |
345 |
40 |
275 |
20 |
30 |
|
Qib 3 |
65 |
450 |
55 |
380 |
18 |
30 |
|
Qib 4 |
80 |
550 |
70 |
483 |
15 |
25 |
|
Qib 5 |
130 |
895 |
120 |
828 |
10 |
25 |
|
Qib 7 |
50 |
345 |
40 |
275 |
20 |
30 |
|
Qib 12 |
70 |
483 |
50 |
345 |
18 |
25 |
Cov txheej txheem tsim khoom
Cov txheej txheem tsim khoom ntawm titanium rings nruj me ntsis raws li siab - txheej txheem kev tsim khoom, suav nrog:
- Smelting: VAR lossis EBM thev naus laus zis yog siv.
- Forging: Precision forging tshuab yog siv los ua qhov khoob ntawm qhov xav tau.
- Machining: CNC tshuab cuab yeej siv rau kev tig, milling, thiab drilling.
- Kev kho deg: Polishing, anodizing, sandblasting, thiab lwm yam kev kho saum npoo tuaj yeem ua kom tau raws li kev siv tshwj xeeb.

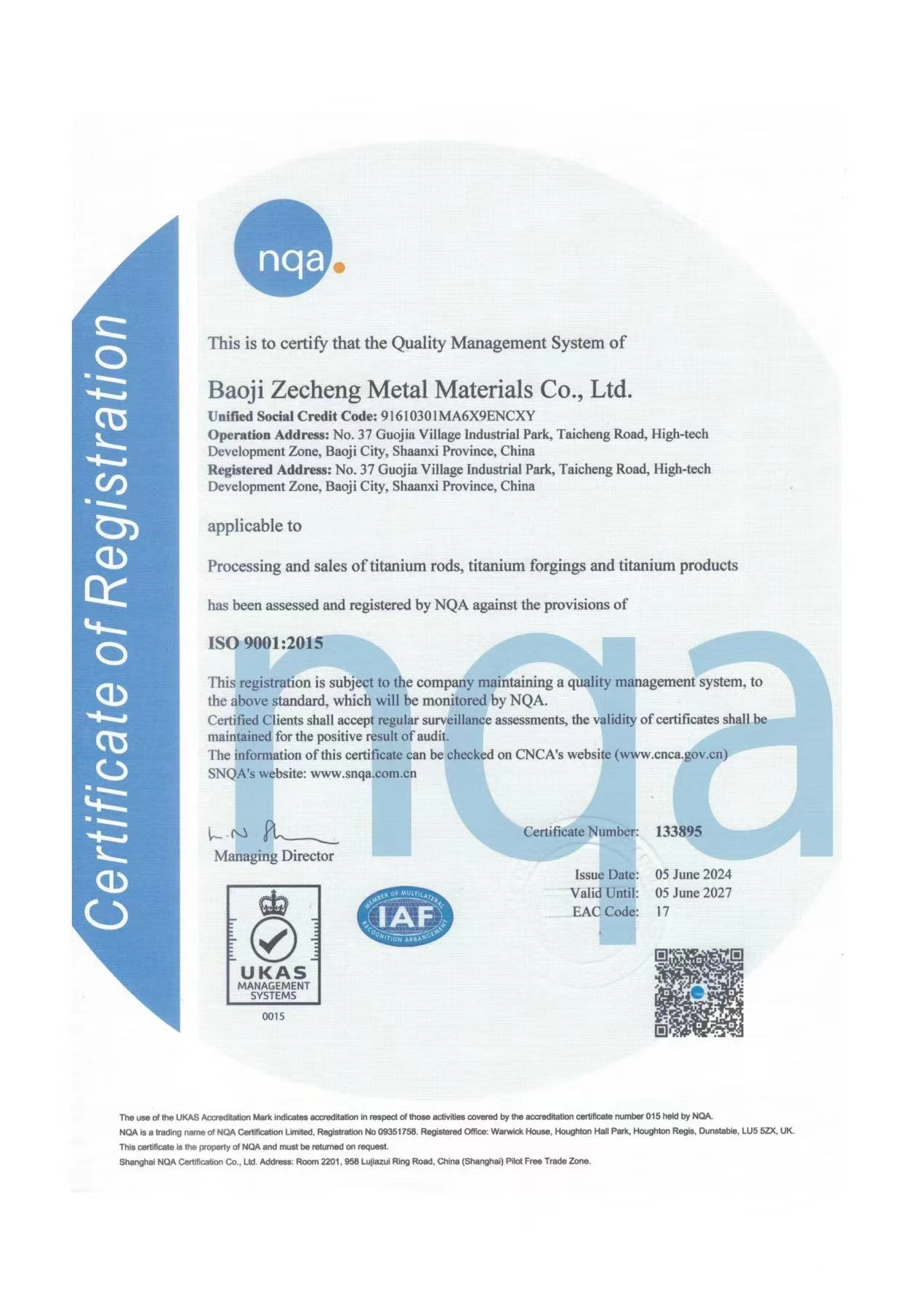

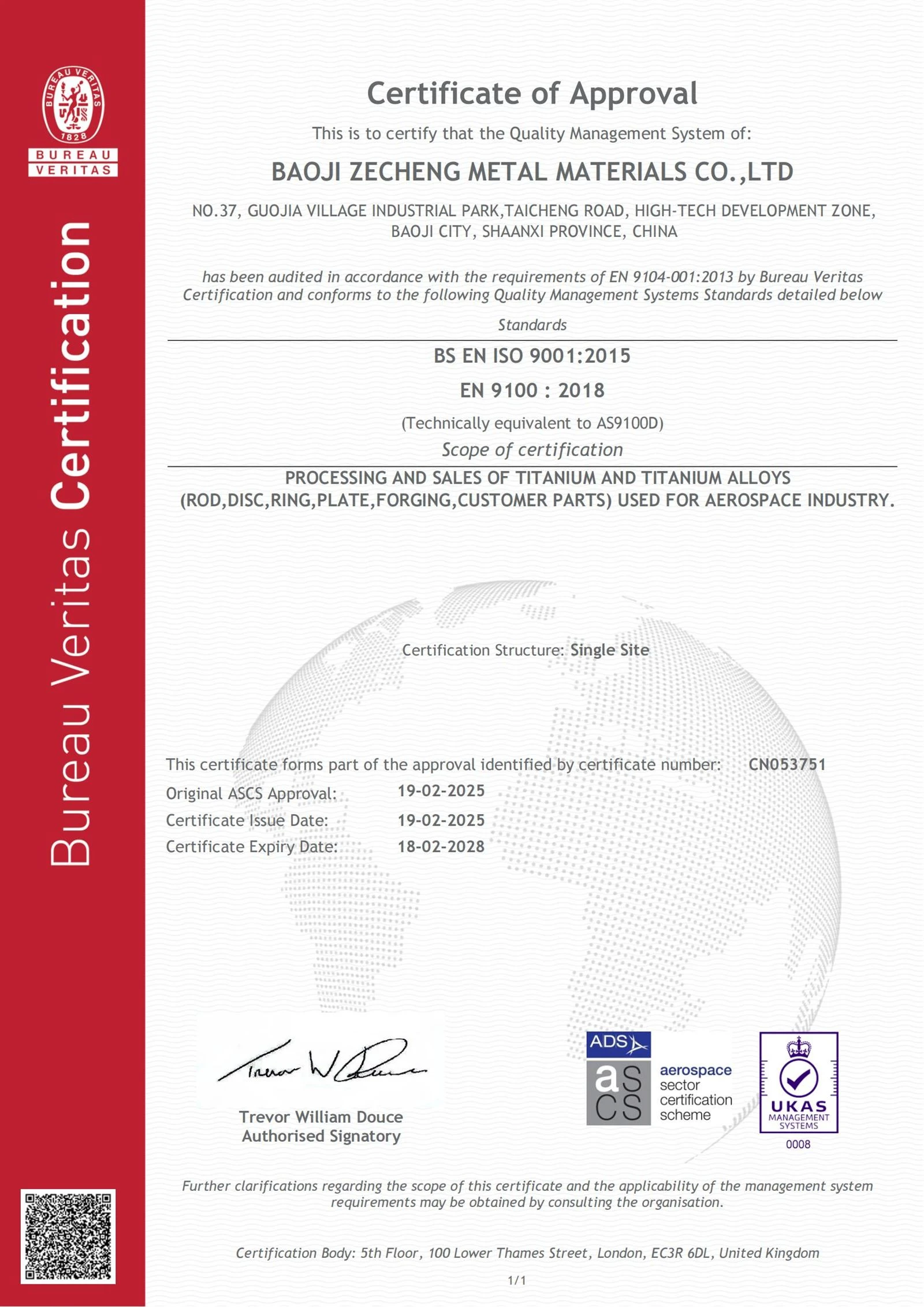

Daim ntawv pov thawj zoo
Tag nrhoTitanium Forged Ringslos ntawm Baoji Zecheng Hlau Khoom Co., LtdISO9001thiabTIAB SA 9100qauv. Txhua yam khoom los nrog thib peb -cov ntaub ntawv pov thawj tog los lav qhov zoo thiab kev ntseeg siab.
Cim npe nrov: Tuam Tshoj Customizable Titanium Rings Tuam Tshoj Customizable Titanium Rings manufacturers, lwm tus neeg, Hoobkas
