Vim li cas thiaj xaiv Peb Cov Yeeb Nkab Titanium Fittings?
Thaum xaiv ASTM B363 titanium yeeb nkab fittings, ntau tus neeg yuav khoom tsuas yog tsom rau tus qauv tab sis saib xyuas qhov sib txawv ntawm cov qib. Rau cov tshuaj chloride-muaj ib puag ncig, WPT12 feem ntau muaj kev tiv thaiv corrosion zoo dua li WPT2. Yog tias txo cov acids tam sim no, WPT7 (Qib 7 titanium nrog palladium ntxiv) feem ntau yog qhov kev xaiv.
Baoji Zecheng Hlau Khoom Co., Ltd. muab ASTM B363 titanium luj tshib, reducers, tees, thiab lwm yam fittings nrog nruj me ntsis tswj thiab kev soj ntsuam zoo. Ntxiv rau ISO 9001 thiab AS9100 cov ntawv pov thawj, txhua qhov khoom xa tuaj suav nrog Daim Ntawv Qhia Txog Cov Khoom Siv (MTR) nrog cov txiaj ntsig ntawm cov tshuaj lom neeg thiab cov khoom siv tshuaj, kom ntseeg tau tias muaj kev ua tau zoo thiab txhim khu kev qha.

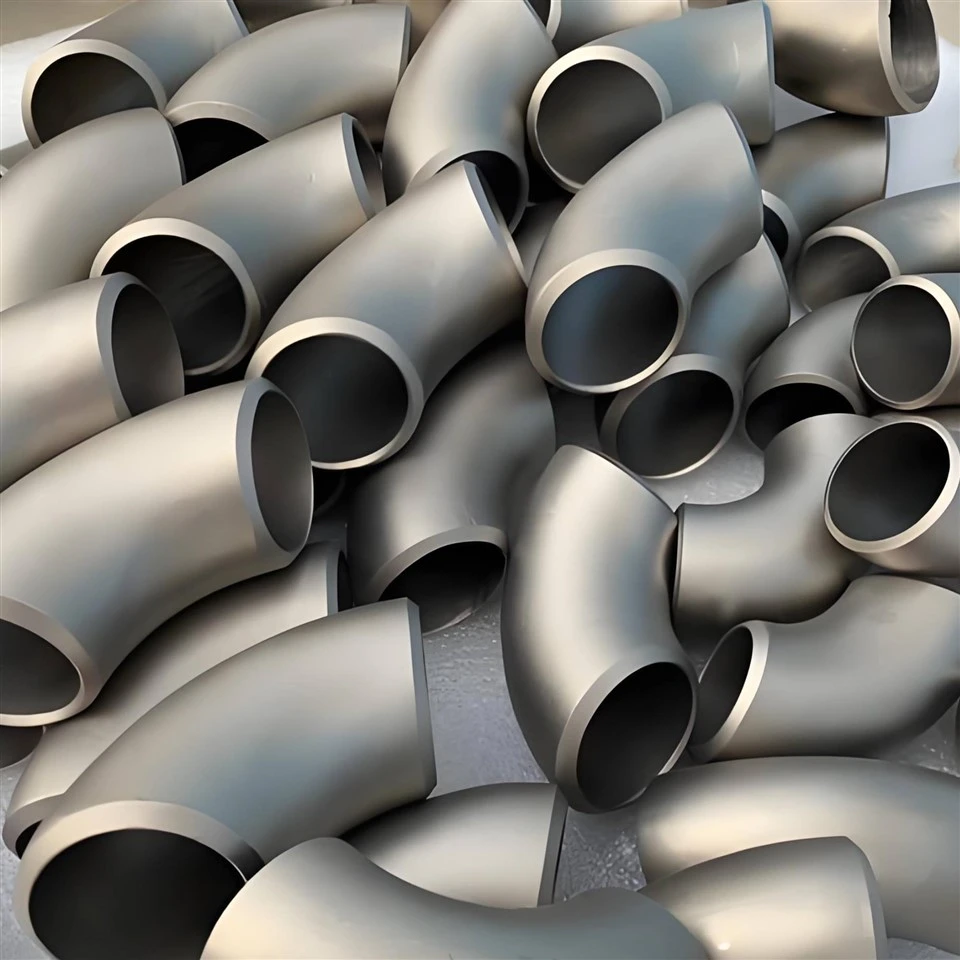

Hom ASTM B363 Titanium yeeb nkab fittings
- Lub luj tshib: 45 degree, 90 degree, 180℃(Long Radius / Short Radius)
- Tees: Sib npaug thiab txo tees
- Reducers: Concentric thiab eccentric
- Stub Ends: Hom A, Hom B, lossis customized
- Cov fittings no tso cai rau koj los teeb tsa cov kav dej sib txuas ua haujlwm tau zoo thaum tswj kev ua haujlwm siab corrosion.
Cov qib khoom thiab cov qauv sib xws
|
Qib |
Pipe Standard |
Tube Standard |
|
WPT 1 |
B861/B862 Qib 1 |
B338 Qib 1 |
|
WPT 2 |
B861/B862 Qib 2 |
B338 Qib 2 |
|
WPT 3 |
B861/B862 Qib 3 |
B338 Qib 3 |
|
WPT 7 |
B861/B862 Qib 7 |
B338 qib 7 |
|
WPT 9 |
B861/B862 Qib 9 |
B338 qib 9 |
|
WPT 12 |
B861/B862 Qib 12 |
B338 Qib 12 |
|
WPT 16 |
B861/B862 Qib 16 |
B338 Qib 16 |
Peb qib kev xaiv ua kom ntseeg tau tias koj tau txais kev sib xyaw ua ke ntawm lub zog, tiv thaiv corrosion, thiab weldability rau koj daim ntawv thov tshwj xeeb.
Nominal Pipe Sizes & Phab ntsa Thickness (Piv txwv li)
|
Nominal Loj (NPS / DN) |
Sab nraud Dia (mm) |
Phab ntsa Thickness Sch 5S (mm) |
Phab ntsa Thickness Sch10S (mm) |
Phab ntsa Thickness Sch40S (mm) |
|
1/2 "(DN15) |
21.3 |
1.65 |
2.11 |
2.77 |
|
3/4 "(DN20) |
26.7 |
1.65 |
2.11 |
2.87 |
|
1" (DN25) |
33.4 |
1.65 |
2.77 |
3.38 |
|
1-1/2 "(DN40) |
48.3 |
1.65 |
2.77 |
3.68 |
|
2" (DN50) |
60.3 |
1.65 |
2.77 |
3.91 |
|
3" (DN80) |
88.9 |
2.11 |
3.05 |
5.49 |
|
4" (DN100) |
114.3 |
2.11 |
3.05 |
6.02 |
|
6" (DN150) |
168.3 |
2.77 |
3.40 |
7.11 |
|
8" (DN200) |
219.1 |
2.77 |
3.76 |
8.18 |
|
12 "(DN300) |
323.9 |
3.96 |
4.57 |
9.53 |
|
24 "(DN600) |
609.6 |
5.54 |
6.35 |
12.7 |
Lus Cim: Kev cai qhov ntau thiab tsawg thiab phab ntsa thicknesses muaj kom tau raws li koj cov txheej txheem tshwj xeeb.
Customization & Quality Assurance
Peb ua kom yooj yim rau koj kom tau raws nraim qhov koj qhov project xav tau:
- Kev cai qhov ntev & qhov tshwj xeeb: Tsis yog - qhov loj me, phab ntsa tuab, thiab cov teeb tsa tshwj xeeb
- Kev kho deg: Pickling, polishing, sandblasting, txheej, thiab lwm yam los txhim kho kev ua haujlwm
- Kev Tswjhwm nruj: Txhua yam khoom ua raws li ISO9001 thiab AS9100, nrog rau cov ntaub ntawv tshuaj xyuas tiav
- Kev pab txhawb nqa: Peb pab neeg pab nrog kev xaiv cov khoom, kos duab tshuaj xyuas, thiab tom qab- kev muag khoom txhawb nqa kom ua tiav txoj haujlwm zoo
FAQ
Q: Cov ntawv thov twg siv ASTM B363 titanium fittings?
Lawv tau siv dav hauv kev ua tshuaj, dej hiav txwv, cov nroj tsuag desalination, offshore platforms, tsim hluav taws xob, aerospace, thiab marine engineering.
Q: Koj puas muab kev tshuaj ntsuam xyuas thib peb, PMI, thiab cov ntawv ceeb toom kuaj corrosion?
Yog lawm. Txhua batch tau muab nrog Daim Ntawv Pov Thawj Kev Xeem Khoom (MTC), suav nrog tshuaj lom neeg muaj pes tsawg leeg, tensile zog, thiab hardness tshwm sim.
Kev tshuaj ntsuam xyuas muaj xws li:
- 100% PMI (Positive Material Identification)
- Kev kuaj ultrasonic (UT)
- Kev ntsuas hluav taws xob (RT)
- Kev kuaj Corrosion
- Electrochemical Corrosion Test
Thib peb-kev soj ntsuam tog los ntawm cov koom haum xws li SGS thiab Bureau Veritas kuj tuaj yeem npaj tau raws li qhov kev thov. Txhawm rau kom muaj sijhawm teem sijhawm, peb xav kom booking cov kev pabcuam tshuaj xyuas yam tsawg 10 hnub ua ntej ua tiav cov khoom.
Q: Qhov txawv ntawm WPT2 thiab WPT12 yog dab tsi? Lawv puas tuaj yeem hloov pauv tau?
Ob qib ua tau zoo hauv dej hiav txwv. Txawm li cas los xij, WPT12 muaj kev tiv thaiv zoo dua nyob rau hauv qis - ntws, nyob twj ywm, thiab cov kab nrib pleb vim nws cov nickel thiab molybdenum ntxiv. Rau qhov tseem ceeb lossis ntev - kev pabcuam sijhawm, WPT12 feem ntau nyiam.
Cim npe nrov: Tuam Tshoj astm b363 titanium yeeb nkab fittings manufacturers, lwm tus neeg, Hoobkas
