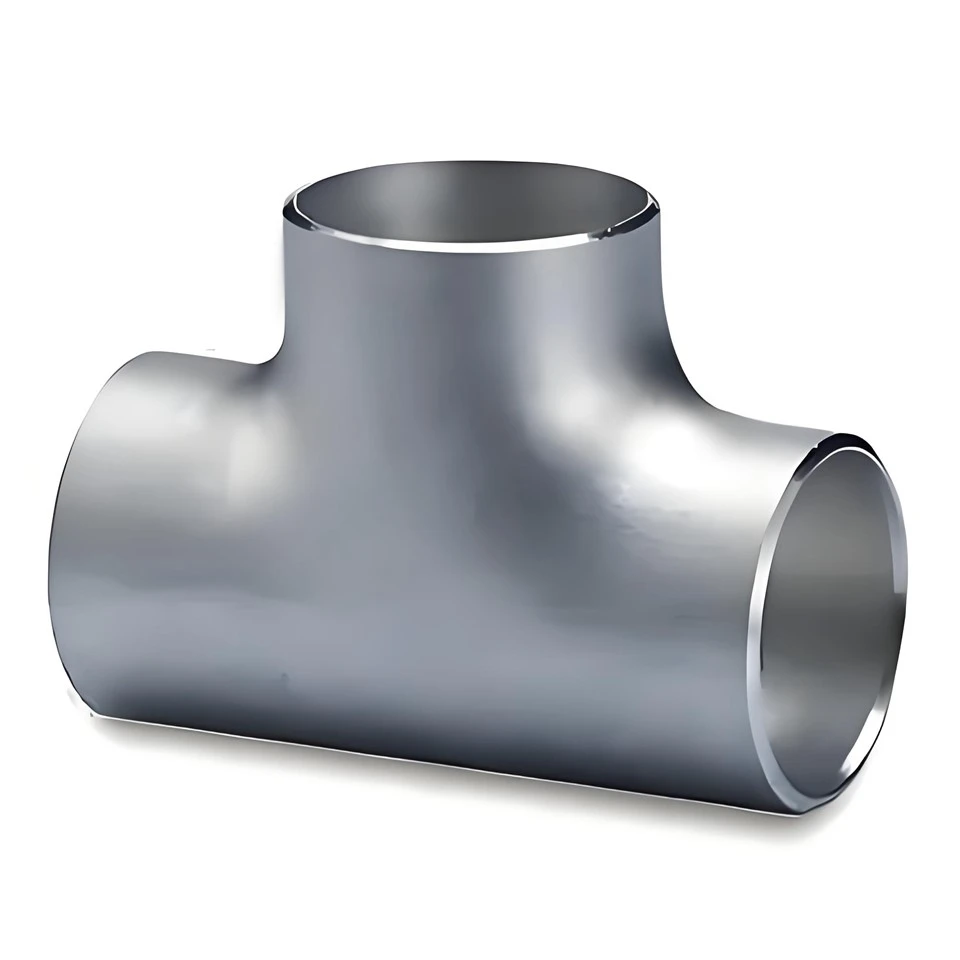

High -Quality Titanium Tee Fittings rau cov ntawv thov tseem ceeb
Ntawm Baoji Zecheng Hlau Khoom Co., Ltd., peb tshwj xeeb hauv kev muabsiab - zoo titanium tee fittingstsim los ua kom tau raws li cov kev xav tau nruj ntawm kev lag luam xws li kev ua tshuaj lom neeg, kev kho dej hiav txwv, kev tsim nkoj, thiab roj thiab roj. Muaj nyob rau hauv ntau qib, suav nrogQib 2, Qib 5, thiab Qib 7, pebTitanium yeeb nkab fittingsyog tsim nyob rau hauv nruj raws li ASTM B363 / ASME SB363 tus qauv. Txawm hais tias koj xav tau kev sib npaug lossis txo cov tees, peb muab cov kev xaiv customizable kom haum koj cov lus qhia meej, nrog cov ceg kaum thiab ceg ntev raws li koj qhov kev xav tau.
Tshawb nrhiav peb cov khoom lag luam titanium ntsig txog:
CustomizableTitanium Tee Fittings - Kho raws li koj xav tau
- Cov ntaub ntawv muaj: CP-Ti (Qib 1, Qib 2), Titanium Alloys (Qib 7, Qib 9, Qib 12)
- Khoom siv: ASTM B363 / ASME SB363 GB / DIN / JIS
- Qhov Loj: ASME B16.9, ASME B16.28. MSS-SP-43
- Dimensions Muaj: NPS ½ "(DN 15 mm) rau NPS 48" (DN 1200 mm)
- Phab ntsa Thickness: Sch5S, SCH10S, SCH40S, SCH80 (kev cai specifications muaj)
- Kev kho deg: Sandblasting, Polishing, Pickling
- Kev sib txuas hom: Vuam (zoo tagnrho rau kev kub siab thiab kub ib puag ncig)
- Cov txheej txheem tsim khoom: Forging, Casting, Vuam

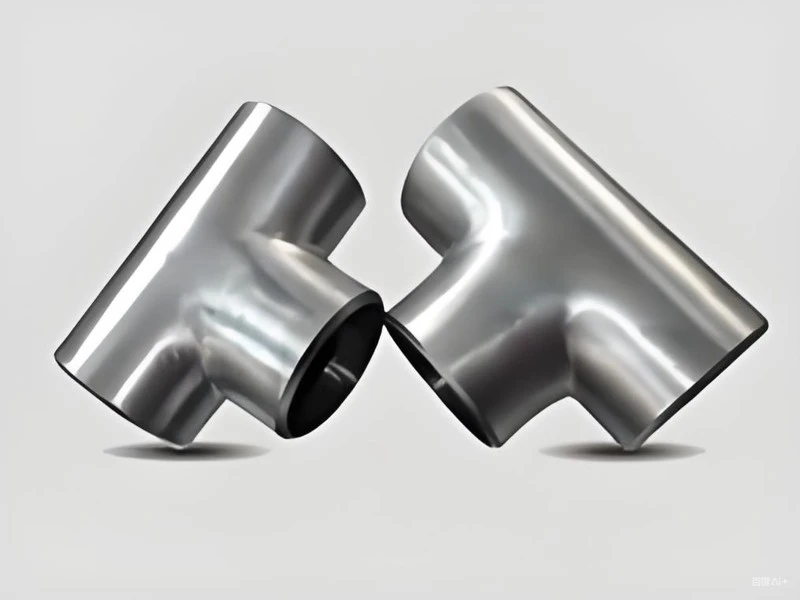

- Customizable Options:
Sib npaug tees, txo tees, thiab sib npaug plaub-txoj kev tees
Txiav qhov ntau thiab tsawg thiab kev teeb tsa kom tau raws li koj qhov system xav tau

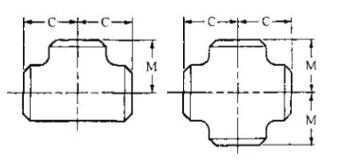

Dimensions rau Equal Tee thiab Plaub -Txoj Kev Tee:
|
Nominal Pipe Loj (NPS) |
DN |
Sab nraud txoj kab uas hla ntawm Bevel (mm) |
Center to End Face |
|
|
Tube Length (C) (mm) |
Qhov hluav taws xob (M) (mm) |
|||
|
1/2 |
15 |
21.3 |
25 |
25 |
|
3/4 |
20 |
26.7 |
29 |
29 |
|
1 |
25 |
33.4 |
38 |
38 |
|
1 1/4 |
32 |
42.2 |
48 |
48 |
|
1 1/2 |
40 |
48.3 |
57 |
57 |
|
2 |
50 |
60.3 |
64 |
64 |
|
2 1/2 |
65 |
73.0 |
76 |
76 |
|
3 |
80 |
88.9 |
86 |
86 |
|
3 1/2 |
90 |
101.6 |
95 |
95 |
|
4 |
100 |
114.3 |
105 |
105 |
|
5 |
125 |
141.3 |
124 |
124 |
|
6 |
150 |
168.3 |
143 |
143 |
|
8 |
200 |
219.1 |
178 |
178 |
|
10 |
250 |
273.0 |
216 |
216 |
|
12 |
300 |
323.8 |
254 |
254 |
|
14 |
350 |
355.6 |
279 |
279 |
|
16 |
400 |
406.4 |
305 |
305 |
|
18 |
450 |
457 |
343 |
343 |
|
20 |
500 |
508 |
381 |
381 |
|
22 |
550 |
559 |
419 |
419 |
|
24 |
600 |
610 |
432 |
432 |
|
26 |
650 |
660 |
495 |
495 |
|
28 |
700 |
711 |
521 |
521 |
|
30 |
750 |
762 |
559 |
559 |
|
32 |
800 |
813 |
597 |
597 |
|
34 |
850 |
864 |
635 |
635 |
|
36 |
900 |
914 |
673 |
673 |
|
38 |
950 |
965 |
711 |
711 |
|
40 |
1000 |
1016 |
749 |
749 |
|
42 |
1050 |
1067 |
762 |
711 |
|
44 |
1100 |
1118 |
813 |
762 |
|
46 |
1150 |
1168 |
851 |
800 |
|
48 |
1200 |
1219 |
889 |
838 |
Chemical Composition ntawm Titanium Alloy Tee Fittings
|
Qib |
Ti |
C, max |
Aw, max |
N, max |
H, max |
Fe, max |
Al |
V |
Pa |
Mo |
Ni |
|
Qib 2 |
Bal. |
0.08 |
0.25 |
0.03 |
0.015 |
0.30 |
- |
- |
- |
- |
- |
|
Qib 7 |
Bal. |
0.08 |
0.25 |
0.03 |
0.015 |
0.30 |
- |
- |
0.12-0.25 |
- |
- |
|
Qib 9 |
Bal. |
0.08 |
0.15 |
0.03 |
0.015 |
0.25 |
2.5-3.5 |
2.0-3.0 |
- |
- |
- |
|
Qib 12 |
Bal. |
0.08 |
0.25 |
0.03 |
0.015 |
0.30 |
- |
- |
- |
0.6-0.9 |
0.2-0.4 |
Mechanical Properties ntawm Titanium Tee - Lub zog thiab Durability
|
Qib |
Tensile zog, min |
Yield zog (0.2% Offset) |
Elongation 2 hauv. lossis 50mm |
|
Qib 2 |
345 |
275 |
20 |
|
Qib 7 |
345 |
275 |
20 |
|
Qib 9 |
620 |
483 |
15 |
|
Qib 12 |
483 |
345 |
18 |
FAQ - KojTitanium Alloy Tee Cov lus nug teb
- Vuam: Feem ntau siv rau siab -siab, siab - qhov kub thiab txias.
- Threaded Connections: Tsim nyog rau me me diameters thiab qis dua kev siv.
- Flanged Connections: Zoo tagnrho rau cov tshuab uas yuav tsum tau disassembly thiab txij nkawm.
- Corrosion Resistance: Titanium feem ntau muaj kev tiv thaiv corrosion, tshwj xeeb tshaj yog nyob rau hauv dej hiav txwv thiab tshuaj lom neeg ib puag ncig.
- Qhov hnyav: Titanium yog qhov sib dua dua li cov hlau tsis muaj steel, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov ntawv thov uas yuav tsum muaj qhov hnyav hnyav.
- Tus nqi: Titanium Pipe Fittings yog kim dua vim yog cov khoom siv ntau dua thiab cov txheej txheem tshwj xeeb.
- Ua haujlwm ib puag ncig: Xaiv qhov tsim nyog titanium alloy raws li qhov kub thiab txias, siab, thiab corrosive tej yam kev mob.
- Pipe Size thiab Specifications: Xyuas kom qhov loj me (NPS lossis DN) thiab phab ntsa thickness phim koj qhov system cov cai.
- Daim Ntawv Thov Xav Tau: Xav txog yam xws li biocompatibility, siab -kub tsis kam, thiab corrosion kuj thaum xaiv cov khoom thiab specifications.
Vim li cas thiaj xaiv Baoji Zecheng Hlau Khoom Co., Ltd.?
Nrog ntau xyoo ntawm kev txawj ntse hauv kev lag luam titanium, ZechengMetal ua kom cov titanium tees zoo tshaj plaws tsim los ua kom tau raws li koj qhov kev xav tau nyuaj tshaj plaws. Peb cov khoom muaj nyob rau kev xa khoom sai, thiab peb muab cov kev pabcuam customized kom haum rau txhua qhov kev xav tau. Peb pab neeg tau mob siab rau kev xa cov precision-engineered, ruaj, thiab corrosion-cov khoom tiv thaiv uas txhim kho koj lub tshuab ua haujlwm.
Tiv tauj peb hnub nokom paub ntau ntxiv txog peb li casTitanium yeeb nkab fittingstuaj yeem muaj txiaj ntsig rau koj qhov project, lossis thov cov lus hais kom haum rau koj cov lus qhia tshwj xeeb!
